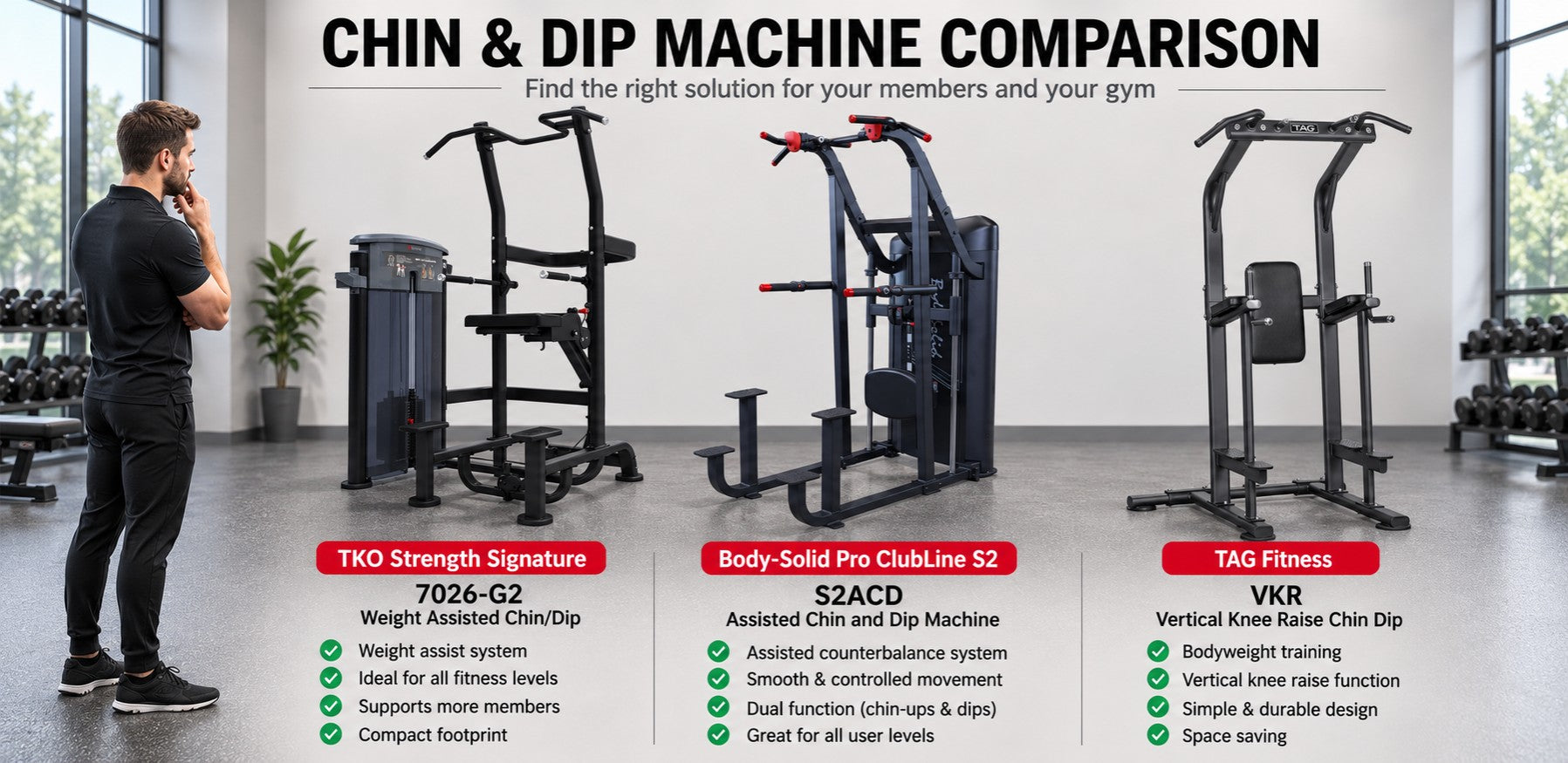

Weight Assisted Chin/Dip Machine vs Dip Station: Which Should Your Gym Buy?

Pull-ups look easy—until gravity files a complaint. The short answer: a weight-assisted chin/dip machine suits beginners and mixed-ability gyms, while a dip station is better for stronger users and smaller budgets. Keep reading to compare space, cost, training value, and how both fit beside your best-selling chest machines.

Weight Assisted Chin/Dip Machine vs Dip Station: Quick Answer

Choose a weight-assisted chin/dip machine when…

Choose an assisted chin dip machine when your members have mixed strength levels. It is especially useful for beginners, older adults, personal training clients, and anyone working toward their first pull-up or dip.

The adjustable support lets users practise the real movement instead of avoiding it altogether.

Choose a standard dip station when…

A standard dip station is a better fit when your members already have solid bodyweight strength. It also works well when the budget is tight or floor space is limited.

Strength gyms often prefer it because members can perform strict or weighted dips without a moving platform getting in the way.

Which option accommodates more gym members?

The weight assisted chin dip machine serves more people. A new member may need 100 pounds of help, while an experienced member may use only a small amount or fold the pad away completely.

A dip station has no such middle ground. Either the user can lift their body weight, or they cannot.

Should a commercial gym have both?

Ideally, yes. The assisted machine handles progression and accessibility, while the dip station supports strict bodyweight work and heavily weighted dips.

For larger gyms, the two stations complement each other rather than compete.

What Is a Weight-Assisted Chin/Dip Machine?

What is a weight-assisted chin/dip machine?

A weight-assisted chin/dip machine is a selectorized strength station that helps users perform pull-ups, chin-ups, and dips. It uses a moving knee pad or standing platform to offset part of the user’s body weight.

Think of it as a training partner that gives exactly the amount of help you select.

How an assisted chin dip machine works

The user chooses a weight on the stack, steps onto the machine, and places their knees or feet on the support platform. The selected weight then pushes the platform upward during the exercise.

This assistance reduces the amount of body weight the user must move.

Why more selected weight means more assistance

This is the part that confuses nearly every first-time user. On most gym machines, more weight means a harder exercise.

On an assisted chin dip machine, more selected weight means more help. A member who chooses 120 pounds of assistance receives more support than someone who selects 40 pounds.

Kneeling pad vs standing assistance platform

Kneeling pads are common on full commercial models. They feel secure and keep the body centered during pull-ups and dips.

Standing platforms can be easier for users who dislike kneeling or have limited knee mobility. The best option depends on the type of members your facility serves.

Weight-assisted chin-up and dip machine exercises

A good assisted pull up dip machine supports underhand chin-ups, overhand pull-ups, neutral-grip pull-ups, and assisted dips.

Many commercial models also let users move the pad out of the way for unassisted repetitions.

Who should use an assisted chin/dip machine?

It is useful for beginners, heavier members, older adults, rehabilitation clients, and anyone rebuilding upper-body strength.

Advanced lifters can also use it for high-repetition finishers after strict pull-ups or dips.

What Is a Dip Station?

How a commercial dip station works

A commercial dip station is much simpler. The user grips two parallel handles, supports their full body weight, lowers the torso, and presses back up.

There is no stack, cable, or assistance platform. Gravity supplies the resistance.

Standard dip station vs pull-up and dip station

A standard dip station focuses mainly on dips and support holds. A combined pull-up and dip station adds overhead grips for pull-ups and chin-ups.

The combined version usually delivers more exercise variety without adding a weight stack.

Dip station vs power tower

A power tower often includes pull-up handles, dip bars, arm pads, a back pad, and knee-raise handles. It is more versatile than a basic dip station.

However, it is usually taller and may take up more room.

Exercises gym members can perform on a dip station

Members can perform chest dips, triceps dips, support holds, knee raises, leg raises, and weighted dips.

Some stations also allow inverted rows or push-up variations, depending on the frame.

Who should use a standard dip station?

It is best for intermediate and advanced users who already have enough strength to control their full body weight.

Beginners can use bands, but that setup is not always smooth or confidence-inspiring.

Is a dip station enough for a commercial gym?

For a small strength-focused facility, it may be enough. For a broad commercial gym, it may leave too many members standing nearby with no practical starting point.

Weight Assisted Chin/Dip Machine vs Dip Station: Main Differences

Counterbalanced assistance vs full body weight

The assisted machine offsets part of the user’s weight. The dip station requires the full body to move from the first repetition.

That single difference shapes almost every buying decision.

Beginner accessibility

The commercial assisted dip machine wins easily here. A beginner can start with generous support and reduce it gradually.

A dip station offers no built-in bridge between “not yet” and “I can do one.”

Strength progression

The weight stack provides clear progression. A member might start with 100 pounds of assistance, move to 80, then 60, and eventually perform an unassisted rep.

That visible progress is motivating and easy for trainers to track.

Exercise variety

Both stations support dips. The assisted machine usually adds several pull-up grips and assisted chin-up options.

A multi-function dip station may still offer core exercises and bodyweight variations.

Stabilization demands

A standard station requires more control because the user manages their entire body in open space.

The assisted machine still demands stability, but the moving platform reduces the total load.

Maximum training resistance

Advanced lifters can attach plates to a belt on a standard dip station. This makes it better for heavy weighted dips.

Assisted machines are designed mainly to subtract load, not add it.

Floor-space requirements

A basic dip station is usually smaller. An assisted machine needs room for the frame, stack, steps, platform, and service access.

Equipment price

The dip station costs less because it has fewer components. A weight assisted chin dip machine includes a selectorized stack, cables, pulleys, moving parts, and a larger frame.

Maintenance requirements

A dip station needs little more than hardware and upholstery checks. An assisted machine requires regular inspection of cables, guide rods, pulleys, and the support mechanism.

Quick comparison table

Feature	Assisted Chin/Dip Machine	Dip Station
Beginner Accessibility	Excellent	Limited
Purchase Price	Higher	Lower
Maintenance	Moderate	Low
Advanced Weighted Training	Limited	Excellent
Member Accessibility	Broad	Narrower

Best choice for beginners

The assisted chin dip machine is the clear winner because users can start with manageable resistance.

Best choice for advanced members

A dip station is better for strict repetitions, weighted dips, and unrestricted bodyweight training.

Best choice for small gyms

The standard station usually wins on size, simplicity, and cost.

Best overall choice for commercial gyms

The assisted machine offers stronger overall value because more members can use it successfully.

How Does an Assisted Chin/Dip Machine Work?

Assisted dip machine weight explained

The selected stack weight represents help, not resistance. More stack weight means the support platform pushes upward with greater force.

How the weight stack offsets body weight

Cables connect the stack to the moving pad. When the user lowers or raises their body, the system reduces the effective load.

Calculating approximate effective body weight

A 200-pound member using 80 pounds of assistance is moving roughly 120 pounds. The exact feel can vary because pulley ratios and machine geometry differ.

Why heavier users may need more assistance

A heavier member naturally has more body weight to move. They may need more dip chin assist weight at the beginning, even if they are reasonably strong.

How assistance changes through the movement

Most commercial systems provide fairly smooth help from bottom to top. Still, the exercise may feel harder at certain points because the user’s leverage changes.

Dip chin assist machine weight selection

Choose enough assistance for controlled repetitions without swinging, bouncing, or cutting the range short.

How members should reduce assistance over time

Once the final repetition looks as clean as the first, lower the assistance slightly. Small changes work better than dramatic jumps.

How to Use a Weight-Assisted Chin/Dip Machine

How to use an assisted chin dip machine

Select the assistance, choose the correct handles, step onto the machine, and place the knees or feet securely on the platform.

Move slowly until you understand how the pad responds.

How to select the correct assistance weight

Start with more support than you think you need. Test two or three repetitions, then adjust until the movement feels challenging but controlled.

How to step onto the knee pad safely

Hold the frame or handles firmly. Place one knee on the pad, let it settle, then bring the second knee onto the support.

Do not jump onto the platform.

How to perform an assisted chin-up

Use an underhand grip, keep the chest lifted, and pull the elbows downward. Bring the chin close to handle height without kicking or swinging.

How to perform an assisted pull-up

Use an overhand grip and keep the ribs controlled. Pull until the upper chest approaches the handles, then lower slowly.

How to perform an assisted dip

Grip the dip handles, lower the body with the elbows tracking naturally, and press back up. Keep the shoulders away from the ears.

How to exit the machine safely

Allow the support pad to return slowly. Step onto the machine platform one foot at a time while continuing to hold the frame.

Common assisted chin/dip machine mistakes

Common mistakes include selecting too little assistance, swinging the legs, bouncing off the bottom, and letting the knee pad snap upward.

Beginner setup

Use enough assistance to complete six to ten smooth repetitions with a full range.

Intermediate progression

Reduce assistance in small increments while keeping the same tempo and control.

Moving to unassisted repetitions

Test a strict bodyweight repetition only after low-assistance sets feel comfortable.

Chin Dip Assist Muscles Worked

Assisted chin-up muscles worked

Assisted chin-ups train the lats, biceps, forearms, upper back, and core.

Assisted pull-up muscles worked

Pull-ups place more emphasis on the lats and upper back while still involving the biceps and grip muscles.

Assisted dip machine muscles worked

The main assisted dip machine muscles worked are the chest, triceps, and front shoulders.

Dip machine target muscles

The dip machine target muscle changes with body position. A slight forward lean increases chest involvement, while a more upright torso shifts work toward the triceps.

How grip position changes muscle emphasis

Underhand grips use more biceps during chin-ups. Neutral grips often feel friendlier on the wrists and shoulders.

Chin dip vs pull-up muscle emphasis

Chin-ups usually involve more biceps. Pull-ups generally place greater emphasis on the lats and upper back.

Back and latissimus dorsi

The lats drive the main pulling motion during chin-ups and pull-ups.

Biceps and forearms

These muscles bend the elbows and maintain grip throughout the repetition.

Chest and front shoulders

Both assist during dips, especially when the torso leans forward.

Triceps

The triceps straighten the elbows as the user presses upward.

Core and stabilizing muscles

The core prevents swinging and helps maintain a steady torso.

Assisted Chin-Up Machine Benefits

Makes pull-ups accessible to beginners

The machine lets members practise pull-ups before they can move their full body weight.

Supports controlled strength progression

The selectorized stack makes improvement easy to measure from week to week.

Helps members practise full-range repetitions

Instead of fighting through half reps, users can learn the complete movement from a stretched bottom position to a strong finish.

Reduces dependence on resistance bands

There is no need to attach, stretch, or climb into a band before every set.

Allows higher-repetition back training

Experienced members can use assistance after strict sets to continue training without losing form.

Helps trainers monitor progress

A trainer can record the assistance level and watch it decrease over time.

Builds confidence before unassisted pull-ups

Completing clean repetitions helps members stop seeing the pull-up bar as an impossible test.

Are assisted pull-up machines good for beginners?

Yes. They are one of the easiest ways to introduce vertical pulling while allowing measurable progression.

Assisted Dip Machine Benefits

Makes dips accessible to more members

Many people struggle with dips because the starting load is their entire body weight. Assistance solves that problem.

Helps users practise proper dip form

Members can focus on depth, elbow position, and shoulder control instead of simply trying not to fall.

Provides adjustable body-weight assistance

The machine can support a wide range of body sizes and strength levels.

Supports chest- and triceps-focused training

A forward lean emphasizes the chest, while an upright torso places more work on the triceps.

Allows gradual progression toward bodyweight dips

Members can reduce assistance plate by plate until they are ready for unassisted reps.

Is the assisted dip machine good for building strength?

Yes. It builds strength when users gradually reduce assistance and maintain controlled form.

Assisted dip chin machine benefits for commercial gyms

One station can train both upper-body pulling and pressing. It also serves more ability levels than a basic dip station.

Benefits of a Standard Dip Station

Lower purchase price

A dip station costs less because it has no selectorized stack or moving support system.

Smaller and simpler construction

The frame is compact and easy for members to understand.

Minimal maintenance

There are no cables, pulleys, or guide rods to service.

Develops full-bodyweight strength

The user must control the entire body through each repetition.

Requires more stabilization

The shoulders, core, and hips work together to prevent swinging.

Supports weighted dips

Advanced users can add plates with a dip belt for greater resistance.

Works well for advanced members

Experienced lifters often prefer the unrestricted movement and simple setup.

Can be incorporated into a power rack or rig

A rack attachment can add dip training without taking up another full station.

Limitations of a Weight-Assisted Chin/Dip Machine

Higher initial cost

The larger frame and selectorized components make it more expensive than a simple dip station.

Larger footprint and greater height

Commercial assisted machines need enough floor area and overhead clearance for pull-ups.

Weight-stack and cable maintenance

Cables, pulleys, guide rods, and the moving platform require regular inspection.

Reverse weight-selection learning curve

First-time users may mistakenly select less weight because they assume it will make the exercise easier.

Knee-pad accessibility considerations

Kneeling may feel uncomfortable for users with limited mobility or sensitive knees.

Limited resistance for advanced weighted exercises

A standard station is usually better for heavy weighted dips and pull-ups.

Longer delivery and installation process

These machines are heavy and may require professional assembly or inside delivery.

Limitations of a Standard Dip Station

Too difficult for many beginners

A member who cannot lift their body weight has no built-in way to reduce the challenge.

No built-in assistance

Progressions require bands, trainer support, or another exercise.

Greater chance of poor form

Users may shrug, swing, or shorten the range when the exercise becomes too difficult.

Resistance bands can be awkward

Bands may slip, twist, or provide inconsistent assistance.

Limited progression for weaker members

The jump from band-assisted work to a strict bodyweight repetition can feel large.

Possible entry problems for shorter users

High handles may be difficult to reach without built-in steps.

Less useful for beginner-focused facilities

A station that only stronger members can use may sit empty during much of the day.

Assisted Chin-Ups vs Unassisted Chin-Ups

How assistance changes the exercise

Assistance reduces the effective body weight while preserving the basic pulling pattern.

Muscle-building differences

Both variations can build muscle when sets are challenging and progression is consistent.

Stabilization and core demands

Unassisted chin-ups require more body control because there is no supporting platform.

Which option is better for learning chin-ups?

The assisted version is usually better because users can practise the complete movement with proper form.

How to progress toward an unassisted chin-up

Lower the assistance gradually while keeping the same range, tempo, and control.

When to reduce the assistance weight

Reduce support once every repetition looks smooth and the user has one or two clean reps left in reserve.

When to begin weighted chin-ups

Add external weight only after several strict bodyweight repetitions feel comfortable.

Assisted Dips vs Bodyweight Dips

How assisted dips work

The support platform offsets part of the user’s weight during the lowering and pressing phases.

Assisted dip machine muscles worked

Assisted dips train the chest, triceps, front shoulders, and core.

Bodyweight dip muscles worked

The same muscles work during bodyweight dips, but they handle the full load.

Which option is safer for beginners?

Assisted dips are usually easier to control when the correct support is selected.

Which option is better for building strength?

Both work well. The right choice is the one that allows progressive, pain-free repetitions.

How to progress toward an unassisted dip

Reduce assistance slowly and test an occasional bodyweight repetition.

When to begin weighted dips

Begin after the member can perform several strict bodyweight dips without shoulder discomfort.

Assisted Chin/Dip Machine vs Resistance Bands

Weight-stack assistance

A selectorized stack provides simple, measurable support.

Resistance-band assistance

Bands cost less but change tension as they stretch.

Consistency of assistance

The machine offers a more repeatable setup from one workout to the next.

Ease of setup

Moving a selector pin is faster than attaching and entering a resistance band.

Beginner confidence

A stable platform usually feels safer than balancing inside a stretched band.

Safety in an unsupervised facility

The machine reduces the risk of bands slipping or being attached incorrectly.

Equipment organization

Built-in assistance keeps loose bands off the floor.

Which option is better for commercial gyms?

The machine is usually the better commercial solution. Bands remain useful for low-cost programs or coached sessions.

Assisted Chin/Dip Machine vs Seated Dip Machine

How a seated dip machine works

The user sits and pushes handles downward against a weight stack.

Seated dip machine muscles worked

A seated dip machine mainly trains the triceps, chest, and front shoulders.

Bodyweight movement vs machine pressing

An assisted dip follows a bodyweight movement pattern. A seated dip uses a fixed pressing path.

Chest and triceps emphasis

Both work the same general muscles, although the seated version often emphasizes the triceps more strongly.

Beginner accessibility

Both are beginner-friendly, but the seated dip is easier to enter and understand.

Which machine offers greater exercise variety?

The assisted chin/dip machine wins because it also supports pull-ups and chin-ups.

Should a gym have both machines?

Large facilities can justify both. Smaller gyms should choose based on whether pulling variety or seated pressing is the bigger need.

Best Weight-Assisted Chin/Dip Machine for Commercial Gyms

TKO Strength Signature Weight Assisted Chin/Dip – 7026-G2

Best overall weight-assisted chin/dip machine

The TKO Strength Signature Weight Assisted Chin/Dip – 7026-G2 is a strong option for commercial facilities with mixed member ability levels.

Counterbalanced assistance system

Its selectorized design allows users to change support quickly between sets.

Assisted and unassisted exercise options

Members can use the counterbalance for progression or move the support away for bodyweight training.

Pull-up and chin-up grip choices

Multiple handles allow overhand, underhand, and neutral-grip pulling variations.

Fold-away knee pad

The movable pad gives stronger members room for unassisted repetitions.

Commercial construction

The machine is designed for regular use in busy training environments.

Ideal facilities and users

It fits commercial gyms, universities, hotels, athletic centers, and personal training studios.

Why the TKO 7026-G2 is a strong commercial choice

Accommodates different strength levels

Beginners and experienced users can train on the same station.

Combines pull-ups and dips in one station

It provides both upper-body pulling and pressing without requiring two selectorized machines.

Supports member progression

Users can reduce assistance in clear, trackable steps.

Fits selectorized strength circuits

The pin-loaded setup feels familiar beside other commercial machines.

Reduces the need for band-assisted setups

This keeps training more consistent and the floor less cluttered.

Body-Solid Weight-Assisted Chin/Dip Machines

Body-Solid weight-assisted chin/dip machine overview

Body-Solid produces several chin/dip options for home, light-commercial, and commercial settings.

Body-Solid Pro Select weight-assisted chin/dip machine

The Body-Solid Pro Select weight assisted chin dip machine is often considered by buyers who want selectorized assistance in a relatively compact format.

Body-Solid residential, light-commercial, and full-commercial options

Check the exact usage rating before placing any model in a public facility.

Body-Solid vs TKO assisted chin/dip machines

Compare assistance range, frame construction, footprint, platform design, warranty, and current pricing.

Why commercial ratings matter

A residential machine may not hold up under constant use, and its warranty may not cover a membership gym.

Which option better fits your facility?

The TKO 7026-G2 is a strong full-commercial choice. The best Body-Solid alternative depends on expected traffic and facility type.

Best Dip Station Options for Commercial Gyms

Standalone commercial dip station

This option is stable, affordable, and easy to place in a strength area.

Pull-up and dip station

A combined station adds vertical pulling without requiring a weight stack.

Vertical knee raise and dip station

This design adds core training and often delivers more exercises per square foot.

Power-rack dip attachment

A rack attachment saves floor space, although it may block the rack while in use.

Wall-mounted dip station

This saves space but requires secure installation into a suitable wall.

Multi-station training rig

A rig works well in group training areas and strength-focused facilities.

Which dip station offers the best value?

A vertical knee raise, pull-up, and dip station often provides the best combination of cost and exercise variety.

Which Option Is Better for Different Facilities?

Large commercial gyms

Offer both when possible. The assisted machine serves beginners, while the dip station handles advanced work.

Small independent gyms

Choose the assisted machine for broad accessibility or the dip station for lower cost and a smaller footprint.

Strength and bodybuilding gyms

A standard station supports weighted dips, but an assisted model still helps new members develop strength.

Personal training studios

The assisted machine gives trainers more progression options and clearer tracking.

Athletic performance centers

Both stations can support upper-body strength, control, and progression.

Physical therapy and wellness facilities

An assisted model is generally more appropriate because the load can be reduced.

Hotels and apartment gyms

The assisted machine is more approachable for casual users with mixed experience levels.

Schools and universities

It works well for students and athletes with very different strength levels.

Home gyms

A basic dip station is usually more practical unless the buyer has generous space and budget.

Should Commercial Gyms Have Assisted Chin/Dip Machines?

Accessibility for beginners

The machine gives new members a realistic starting point.

Value for personal trainers

Trainers can build measurable progressions around the selected assistance.

Benefits for older or deconditioned members

The counterbalance lowers the starting strength requirement.

Progression toward bodyweight exercises

Members can see clear improvement as the selected assistance decreases.

Expected member usage

Usage is usually higher in general fitness gyms than it would be for a standard dip station alone.

When a standard dip station may be enough

It may be enough in a compact gym serving experienced lifters.

When a gym should offer both stations

Offer both when your membership includes beginners, athletes, bodybuilders, and personal training clients.

How Much Space Does an Assisted Chin/Dip Machine Need?

Assisted chin/dip machine dimensions

Dimensions vary by model, so always check the current specification sheet before ordering.

Machine height and ceiling clearance

Leave enough space for the user’s head and hands above the pull-up handles.

Space for user entry and exit

Members need clear access to steps, platforms, and side handles.

Weight-stack access

Staff should be able to inspect and service the stack without moving nearby equipment.

Clearance around pull-up handles

Avoid placing the machine beneath lights, pipes, or ceiling fans.

Traffic flow around the station

Do not position the steps or moving platform directly in a busy walkway.

Comparing its footprint with a dip station

A standard dip station is normally smaller and easier to fit into a tight layout.

Where to place it on the gym floor

Place it near back machines, arm equipment, or the selectorized strength circuit.

Weight-Assisted Chin/Dip Machine Price

What affects assisted chin/dip machine pricing?

Brand, commercial rating, stack size, frame design, upholstery, and warranty all influence price.

Commercial vs residential pricing

Commercial machines cost more because they are designed for frequent public use.

Weight-stack size

A larger stack may provide a wider assistance range for heavier beginners.

Frame and upholstery options

Custom finishes can increase the final price.

Freight and installation costs

These machines are heavy, so freight and assembly can form a meaningful part of the budget.

Weight-assisted chin/dip machine for sale

Before ordering, confirm dimensions, warranty coverage, freight terms, and installation requirements.

New vs used assisted chin/dip machines

A used unit may save money, but inspect the cables, pulleys, guide rods, pads, and moving support carefully.

Is the lowest price always the best value?

No. A reliable machine that receives daily use can outperform a cheaper model that is uncomfortable or difficult to service.

Cost and Return on Investment

Assisted chin/dip machine purchase cost

The upfront investment is higher than the cost of a standard dip station.

Commercial dip station purchase cost

A dip station is more affordable and easier to install.

Maintenance and replacement parts

The assisted machine needs more ongoing care, while the dip station has fewer components that can wear out.

Expected member utilization

The assisted model often receives more use because it accommodates a broader range of abilities.

Personal training value

Trainers can use it for structured pull-up and dip progressions.

Number of exercises per station

Both stations offer several exercises, but the assisted machine serves more strength levels.

Cost per usable exercise

The higher purchase price becomes easier to justify when the machine supports pull-ups, chin-ups, dips, and progression work.

Which machine offers the stronger long-term return?

The assisted machine usually wins in a general commercial gym. The standard dip station may deliver better value in a compact, strength-focused facility.

What Should Gym Owners Compare Before Buying?

Commercial equipment rating

Confirm that the machine is approved for full commercial use.

Assistance range

The stack should support beginners without becoming useless for stronger members.

Weight-stack increments

Smaller increments make progression smoother.

Knee pad vs standing platform

Consider comfort, stability, and ease of entry.

Pull-up and chin-up grip variety

Multiple grips improve exercise variety and user comfort.

Dip-handle position and width

The handles should feel natural for users with different shoulder widths.

Steps and machine accessibility

Look for stable steps and secure handholds.

Fold-away assistance mechanism

This allows advanced members to perform unassisted repetitions.

Maximum user weight

Check the stated capacity and expected member population.

Machine dimensions and height

Measure doorways, hallways, elevators, floor space, and ceiling clearance.

Warranty and parts availability

Good service support reduces downtime when components wear out.

Delivery and assembly requirements

Plan for freight access, inside delivery, and final installation.

Common Buying Mistakes

Assuming every member can perform bodyweight dips

Many cannot, which can leave a standard station underused.

Buying a residential machine for commercial use

This may cause durability problems and void the warranty.

Choosing too little available assistance

The machine should provide enough support for heavier beginners.

Ignoring shorter or less-mobile users

Steps, handholds, and platform design affect accessibility.

Forgetting ceiling clearance

Users need open space above the pull-up handles.

Comparing price without comparing usage

A cheaper station is not better if most members cannot use it.

Buying equipment that duplicates another station

Check your racks, rigs, power towers, and cable area before purchasing.

Failing to budget for maintenance

Cables and moving parts eventually need inspection or replacement.

Not teaching members how the assistance stack works

A clear instruction label can prevent confusion and unsafe setups.

Frequently Asked Questions

What is a weight-assisted chin/dip machine?

It is a counterbalanced machine that helps users perform pull-ups, chin-ups, and dips.

How does a weight-assisted chin/dip machine work?

A selected weight stack pushes a knee or standing platform upward to offset body weight.

Why does adding more weight make the exercise easier?

The stack provides assistance rather than resistance.

Is an assisted dip machine better than a dip station?

It is better for accessibility. A dip station is better for simplicity and advanced weighted training.

Should commercial gyms have assisted chin/dip machines?

Yes, especially when serving beginners and mixed ability levels.

Are assisted pull-up machines good for beginners?

Yes. They allow beginners to practise complete repetitions with controlled assistance.

How much space does an assisted chin/dip machine need?

It needs room for the full frame, user access, overhead movement, and weight-stack service.

What muscles does a chin dip assist machine work?

It trains the back, biceps, chest, triceps, shoulders, forearms, and core.

Is the assisted dip machine good?

Yes, especially when users reduce assistance gradually as strength improves.

Can you perform unassisted pull-ups on the machine?

Many commercial models allow this when the support pad folds away.

Can you perform weighted dips on the machine?

Possibly, but a standard dip station is usually better for heavy weighted dips.

What assistance weight should a beginner select?

Choose enough support to complete smooth repetitions through a full range.

Is a seated dip machine the same as an assisted dip machine?

No. A seated dip uses a pressing arm, while an assisted dip reduces bodyweight resistance.

Is a weight-assisted chin/dip machine worth the price?

For most commercial gyms, yes. It makes pull-up and dip training available to far more members.

Final Verdict — Weight-Assisted Chin/Dip Machine or Dip Station?

Best choice for beginner-friendly commercial gyms

Choose the weight-assisted chin/dip machine.

Best choice for strength and bodybuilding gyms

A standard dip station is excellent for weighted work, although offering both gives members more options.

Best choice for small facilities

The dip station offers a smaller footprint and lower purchase price.

Best choice for hotels and apartment gyms

The assisted machine is easier for casual users and mixed ability levels.

Best overall commercial machine

The TKO Strength Signature Weight Assisted Chin/Dip – 7026-G2 is a strong overall choice for commercial gyms that want accessibility, progression, and upper-body exercise variety.

When a dip station is enough

A dip station may be enough when your members are experienced and floor space is tight.

When your gym should purchase both

Purchase both when your facility serves beginners, athletes, bodybuilders, and personal training clients.

Request a quote, bulk pricing, and current weekly discounts

Our pricing is highly competitive, and customers can inquire about custom discounts for bulk orders and complete gym packages.

We also run rotating weekly coupon codes offering 5% off qualifying orders. Contact us for current pricing, availability, and the latest promotional code.
