Defiant Strength Plate Loaded Leg Extension – DS-923

Defiant Strength Plate Loaded Leg Extension – DS-923

Commercial Plate Loaded Leg Extension for Targeted Quadriceps Training

Introduction

The Defiant Strength Plate Loaded Leg Extension – DS-923 is designed for focused quadriceps training in commercial gyms, school weight rooms, collegiate strength facilities, athletic performance centers, and serious home gyms.

Built for smooth movement and durable daily use, this plate loaded leg extension combines heavy-duty construction, supportive padding, and adjustable user positioning to create a dependable lower-body training station. With a counterbalanced movement arm, self-adjusting foot roller, and plate-loaded resistance system, the DS-923 is made to support controlled leg extension training for a wide range of users.

Why Choose the Defiant Strength DS-923 Plate Loaded Leg Extension?

• Targeted Quadriceps Training – Designed specifically for leg extension exercises

• Plate Loaded Resistance – Allows users to add resistance with Olympic plates

• Counterbalanced Movement Arm – Supports smoother movement through each rep

• Self-Adjusting Foot Roller – Helps improve fit and comfort during training

• Adjustable Back Pad – Supports better positioning for different users

• Integrated Plate Storage – Keeps training plates organized and within reach

Features & Benefits

Focused Leg Extension Training

The DS-923 is built for isolating the quadriceps through controlled leg extension movement. This makes it a practical addition to lower-body strength programs, athletic development, rehabilitation-style strength work, and general commercial gym use.

Plate Loaded Resistance System

The machine uses a 10" stainless steel weight horn with a safety pin for resistance loading. This gives users a simple way to adjust the training load based on strength level and program needs.

Counterbalanced Movement Arm

The movement arm is counterbalanced and pivots to the right of the seat pad, helping support smoother movement and more controlled repetitions throughout the exercise.

Self-Adjusting Single-Foot Roller

The DS-923 utilizes a self-adjusting single-foot roller to help support fit and comfort during leg extension training. This allows the machine to adapt more easily to different users.

Adjustable Back Pad

The adjustable back pad uses a stainless steel slide tube, allowing users to modify the setup for better positioning and support during training.

Rubber-Coated Side Handles

Two rubber-coated grip handles are positioned on the side of the seat pad to provide added stability and control while training.

Heavy-Duty Pivot System

The primary movement arms use 25mm sealed pillow block ball bearings to support smooth, durable performance during repeated use.

Comfortable Pad Design

The primary seat pad is 24" wide x 23" deep and 2.5" thick, with a 3" bull nose foam wrap at the front. The tapered backrest pad is 11" wide at the bottom x 17" tall and 2.5" thick, helping support user comfort during training.

Integrated Plate Storage

Plate storage is built as a bolt-on tree tower with two 8" stainless steel weight horns and one 4" stainless steel weight horn. This helps keep plates organized and close to the machine.

Durable Commercial Construction

The frame is built with 3" x 2" 11-gauge tubing and 4" x 2" tubing with a 3mm wall, along with sheet steel ranging from 1/4" to 3/8" thickness. Frames also break down into sections for shipping.

Floor Protection Features

Rubber foot pads are included on all floor contact points to help protect flooring and improve machine stability.

Product Specifications

• Model: DS-923

• Product Type: Plate Loaded Leg Extension

• Brand: Defiant Strength

• Manufacturer: Defiant Strength

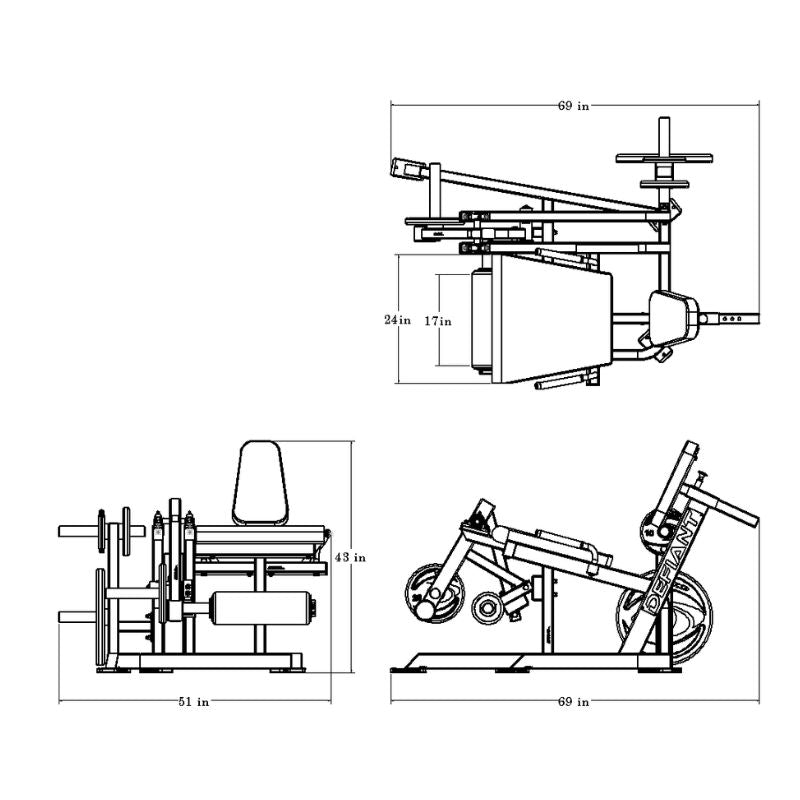

• Dimensions: 69" L x 51" W x 43" H

• Product Weight: 230 lbs

• Frame Tubing: 3" x 2" 11-gauge (50mm x 75mm) and 4" x 2" (100mm x 50mm x 3mm wall)

• Steel Thickness: 1/4" to 3/8" (6mm to 10mm)

• Back Pad: Adjustable back pad with stainless steel slide tube

• Movement Arm: Counterbalanced movement arm pivoting to the right of the seat pad

• Resistance Horn: One 10" stainless steel weight horn with safety pin

• Foot Roller: Self-adjusting single-foot roller

• Pivot System: 25mm sealed pillow block ball bearings

• Seat Pad Size: 24" W x 23" D x 2.5" thick

• Seat Pad Front: 3" bull nose foam wrap

• Backrest Pad Size: 11" wide at bottom x 17" tall x 2.5" thick

• Grip Handles: Two rubber-coated side handles

• Plate Storage: Bolt-on tree tower with two 8" and one 4" stainless steel weight horns

• End Caps: Pressed-in thick aluminum end caps on all weight horns

• Floor Contact Points: Rubber foot pads

• Upholstery: Double-stitched premium Naugahyde

• Lead Time: Custom, Quickship

Warranty

• Warranty: Not specified in the provided product details

Important Information

• Plate-loaded machine sold individually

• Olympic weight plates sold separately

• Quickship items available only in Matte Black with Black upholstery

• Standard frame color is Matte Black

• Standard upholstery color is Black

• Custom frame colors are available

• Custom upholstery colors are available

• Premium upholstery colors are available

• SKU: DS-923

• Product listing description: Defiant Strength Plate Loaded Leg Extension

Color Options

Standard Quick Ship Colors

• Frame: Matte Black

• Upholstery: Black

Custom Frame Colors

• Red

• White

• Black

• Matte Black

• Royal Blue

• Navy Blue

• Vegas Gold

• Burgundy

• Columbia Blue

• Organic Orange

• Yellow

• Green

• Dark Green

• Purple

Custom Upholstery Colors

• Blue

• Heritage Blue

• Red

• Amber Brown

• Gray

• Maroon

• Black

Premium Upholstery Colors

• Nasturtium

• Persimmon

• American Beauty

• New Purple

• Navy

• Royal Blue

• New Burgundy

• Emerald

• Hunter Green

• Camelback

Color Disclaimer

Digital colors may vary. Computer monitors are not all calibrated equally, and color reproduction online may not precisely match the actual product color.

Perfect For

• Commercial gyms

• School weight rooms

• Collegiate strength facilities

• Athletic performance centers

• Strength and conditioning programs

• Sports training facilities

• Lower-body machine sections

• Quadriceps-focused training

• Rehabilitation-style strength work

• Serious home gym setups

Build a Stronger Lower-Body Training Area

The Defiant Strength Plate Loaded Leg Extension – DS-923 gives your facility a dedicated machine for controlled quadriceps training, durable commercial performance, and smooth daily use. Add it to your strength floor to support focused leg training with adjustable positioning, integrated plate storage, and a strong plate-loaded design.
