Defiant Strength 35° Linear Bearing Hack Squat – DS-920

Defiant Strength 35° Linear Bearing Hack Squat – DS-920

Commercial Hack Squat Machine with Adjustable Foot Plate, Plate Storage & 2,000 lb Working Load Capacity

Introduction

The Defiant Strength 35° Linear Bearing Hack Squat – DS-920 is designed for lower-body strength training in commercial gyms, school weight rooms, collegiate strength facilities, athletic training centers, and performance-focused fitness spaces.

Built with a 35-degree sled angle, adjustable foot plate, thick foam shoulder pads, large backrest pad, adjustable safety range limiters, and a 2,000 lb working load capacity, this hack squat machine is made for serious leg training and repeated commercial use.

The DS-920 supports controlled squat movement while giving users multiple safety and setup features, including sled stop handles, stainless steel sled stops, plate storage horns, and retractable band pegs.

Why Choose the Defiant Strength DS-920 35° Linear Bearing Hack Squat?

• 2,000 lb Working Load Capacity – Built for heavy lower-body strength training

• 35° Linear Hack Squat Design – Supports controlled squat movement through a consistent path

• Adjustable Foot Plate – Allows users to adjust positioning for different training needs

• Thick Foam Shoulder Pads – Helps support comfort during loaded hack squat movements

• Large Backrest Pad – Provides support throughout each rep

• Adjustable Safety Range Limiters – Spring-loaded design absorbs shock from impact

Features & Benefits

35° Linear Hack Squat Design

The 35-degree angle supports a controlled lower-body movement path for hack squat training. This makes the DS-920 a strong option for training quads, glutes, hamstrings, and overall leg strength.

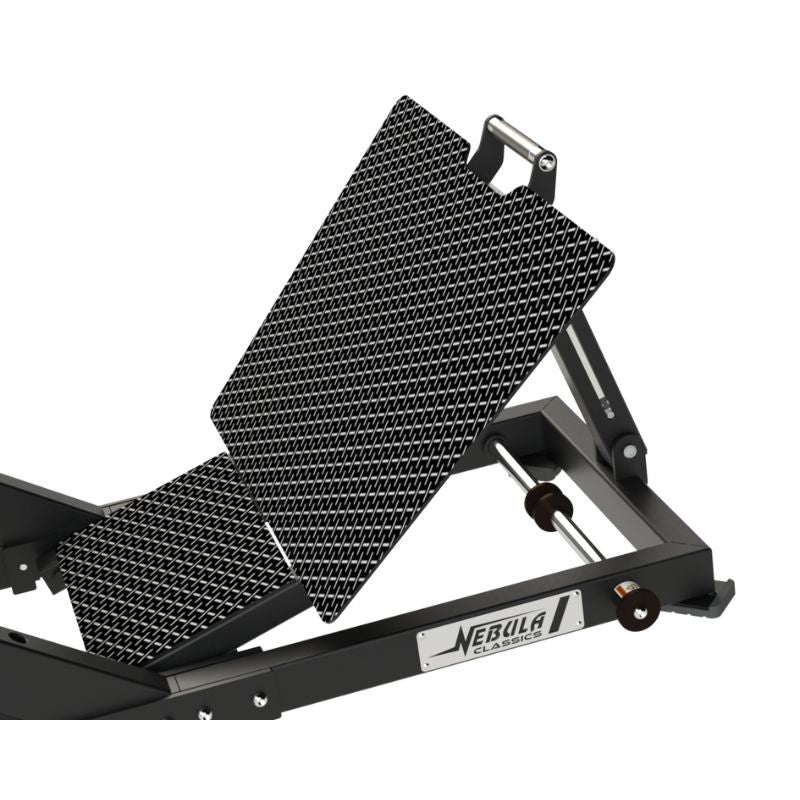

Adjustable Foot Plate

The adjustable foot plate allows users to modify the angle and setup based on comfort, training style, and lower-body movement goals. This helps support different squat positions and user preferences.

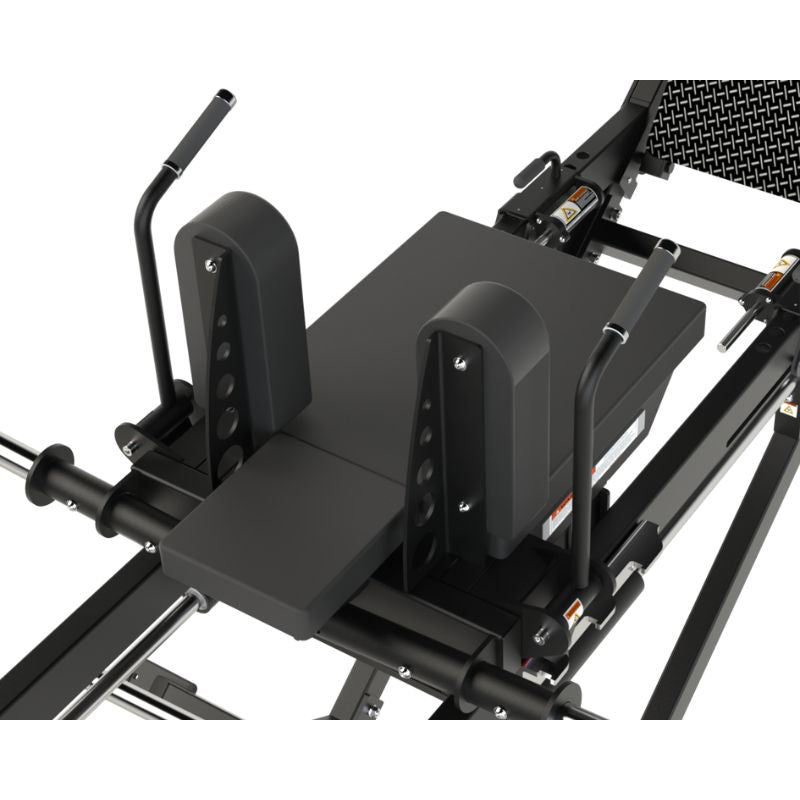

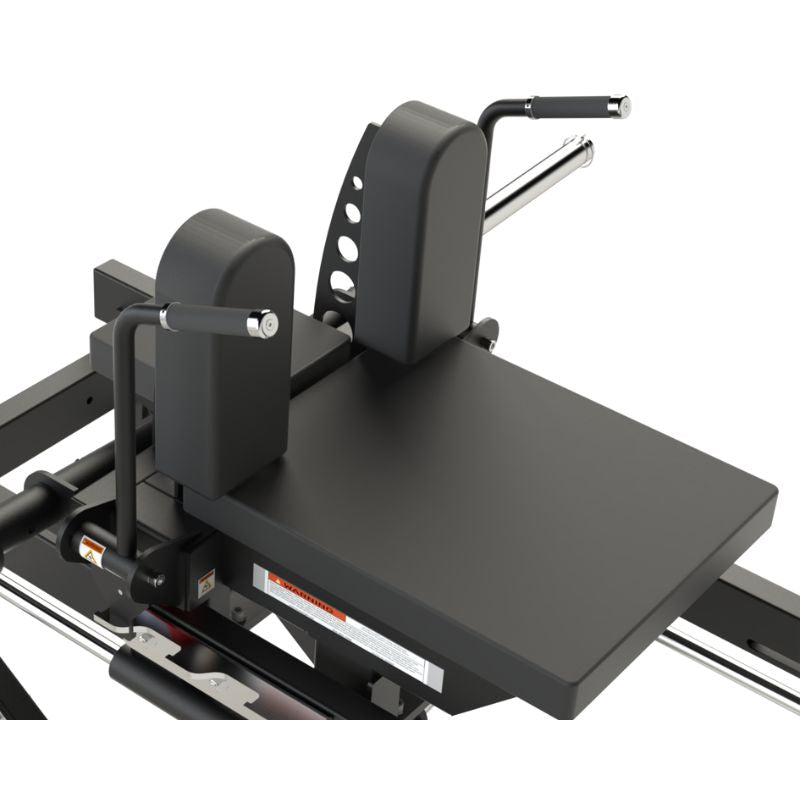

Thick Foam Shoulder Pads

The machine includes thick foam shoulder pads to help support comfort during loaded movements. This is especially helpful during heavier sets and repeated training sessions.

Large Backrest Pad

The large backrest pad helps keep the user supported throughout the movement, allowing for a more stable hack squat position during training.

Easy-to-Reach Sled Stop Handles

The sled stop handles are angled forward for an ergonomic grip, making them easier for users to reach before and after each set.

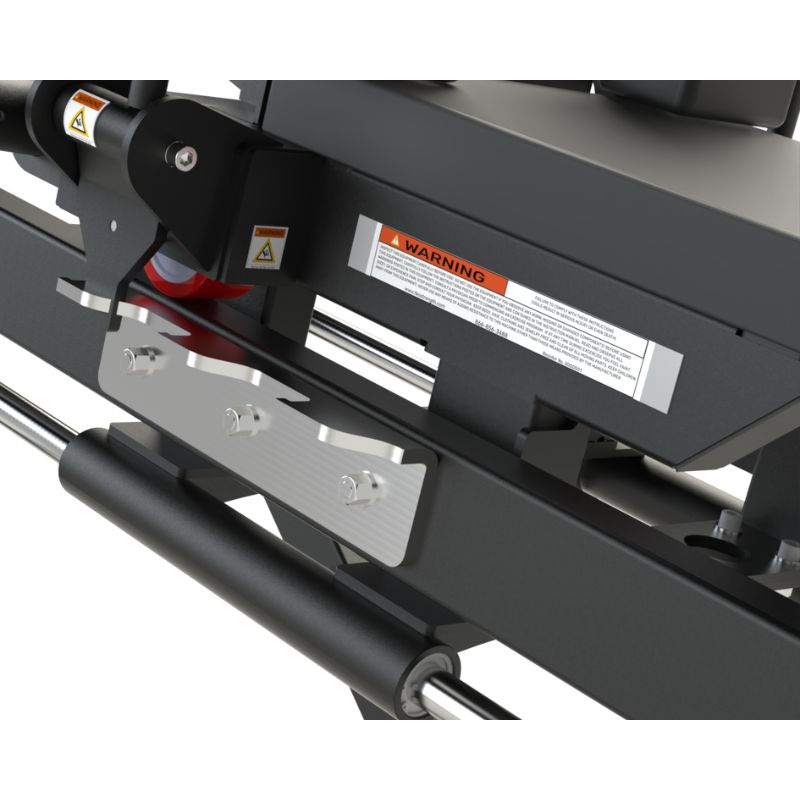

Stainless Steel Sled Stops

The DS-920 includes stainless steel sled stops with 3 positions on the side of the frame wedge. This gives users multiple stop points for setup, safety, and controlled training.

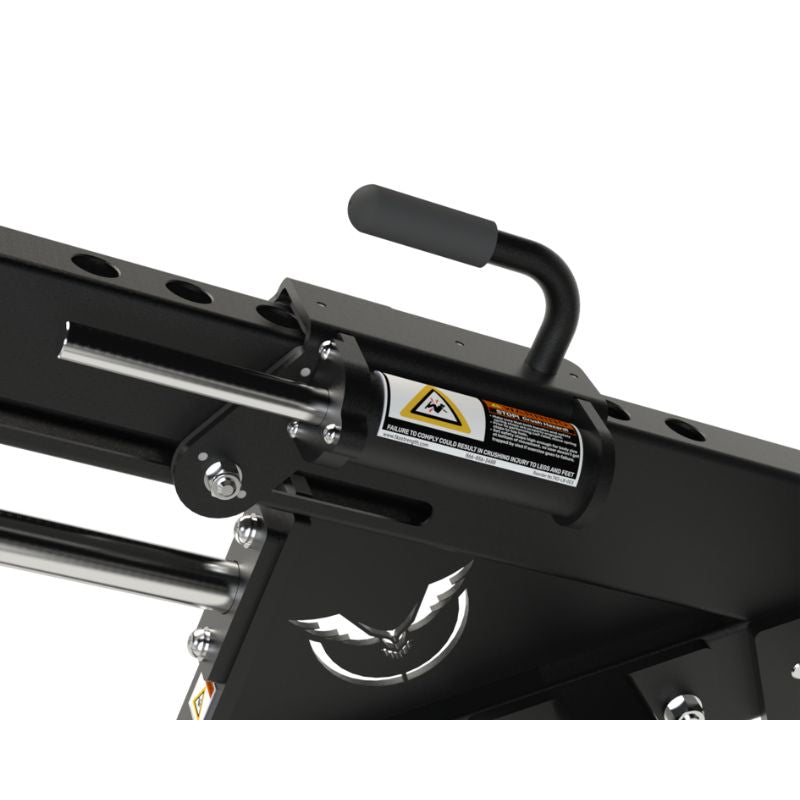

Adjustable Safety Range Limiters

The spring-loaded safety range limiters are adjustable and designed to absorb shock from impact. This adds a key safety feature for heavy lower-body training.

Integrated Plate Storage Horns

Two stainless steel horns per side allow 45 lb plates to be stored directly on the machine. This helps keep plates close to the hack squat and supports a cleaner training area.

Sled and Storage Peg Safety Angle

The sled and storage pegs are positioned at a 3° upward tilt for added safety. This helps keep plates more secure while loaded or stored on the machine.

Retractable Band Pegs

Retractable band pegs are installed below the seat frame, giving coaches and users more training options for accommodating resistance and lower-body strength development.

Product Specifications

• Model: DS-920

• Product Type: 35° Linear Bearing Hack Squat

• Brand: Defiant Strength

• Manufacturer: Defiant Strength

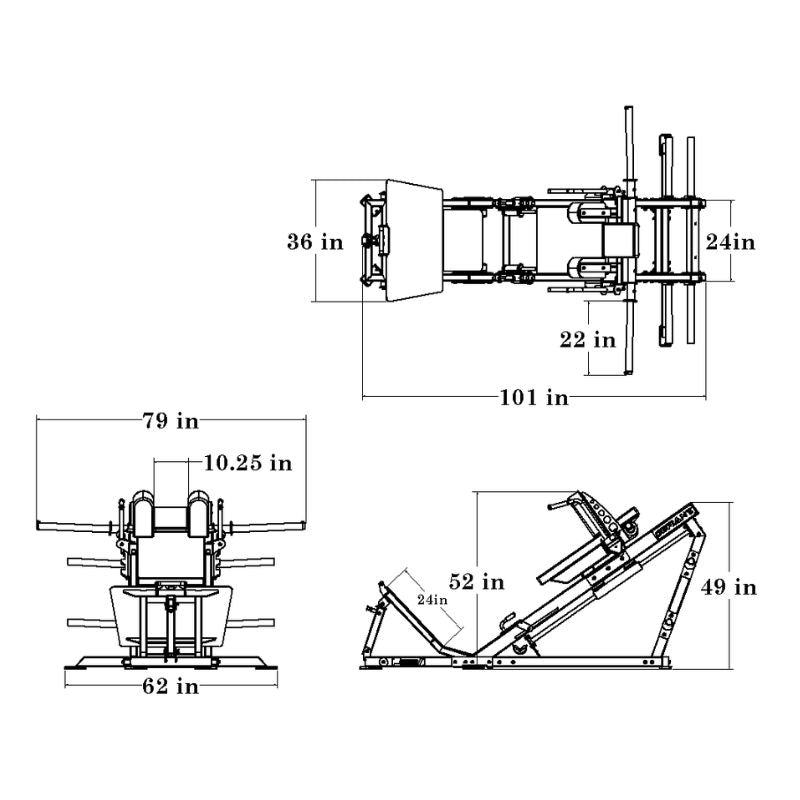

• Dimensions: 101" L x 79" W x 52" H

• Product Weight: 636 lbs

• Listed Product Weight: 640 lbs

• Sled Weight: 171 lbs

• Push Weight at 35°: 106 lbs

• Working Load Capacity: 2,000 lbs

• Foot Plate: Adjustable foot plate

• Shoulder Pads: Thick foam shoulder pads

• Back Pad: Large backrest pad

• Sled Stop Handles: Large, easy-to-reach handles angled forward

• Sled Stops: Stainless steel sled stops with 3 positions

• Safety System: Adjustable spring-loaded safety range limiters

• Plate Storage: Two stainless steel horns per side

• Storage Capacity: Designed to hold 45 lb plates simultaneously

• Peg Angle: 3° upward tilt on sled and storage pegs

• Band Pegs: Retractable band pegs below the seat frame

• Upholstery: Double-stitched Naugahyde upholstery

• Lead Time: Custom, Quickship

Warranty

• Warranty: Not specified in the provided product details

Important Information

• Plate-loaded machine sold individually

• Olympic weight plates sold separately

• Quickship items available only in Matte Black with Black upholstery

• Standard frame color is Matte Black

• Standard upholstery color is Black

• Custom frame colors are available

• Custom upholstery colors are available

• SKU: DS-920

• Product listing description: Defiant Strength 35° Linear Bearing Hack Squat

Color Options

Standard Quick Ship Colors

• Frame: Matte Black

• Upholstery: Black

Custom Frame Colors

• Red

• White

• Black

• Matte Black

• Royal Blue

• Navy Blue

• Vegas Gold

• Burgundy

• Columbia Blue

• Organic Orange

• Yellow

• Green

• Dark Green

• Purple

Custom Upholstery Colors

• Blue

• Heritage Blue

• Red

• Amber Brown

• Gray

• Maroon

• Black

Upgrade Upholstery Colors

• Nasturtium

• Persimmon

• American Beauty

• New Purple

• Navy

• Royal Blue

• New Burgundy

• Emerald

• Hunter Green

• Camelback

Color Disclaimer

Digital colors may vary. Computer monitors are not all calibrated equally, and color reproduction online may not precisely match the actual product color.

Perfect For

• Commercial gyms

• School weight rooms

• Collegiate strength facilities

• Athletic performance centers

• Strength and conditioning programs

• Sports training facilities

• Hack squat stations

• Lower-body strength programs

• Plate-loaded machine sections

• Serious home gym setups

Build a Stronger Hack Squat Training Station

The Defiant Strength 35° Linear Bearing Hack Squat – DS-920 gives your facility a strong plate-loaded machine for controlled lower-body training, athletic strength development, and daily commercial use. Add it to your strength floor to support serious leg training with a stable 35-degree movement path, adjustable safety features, and heavy working load capacity.
