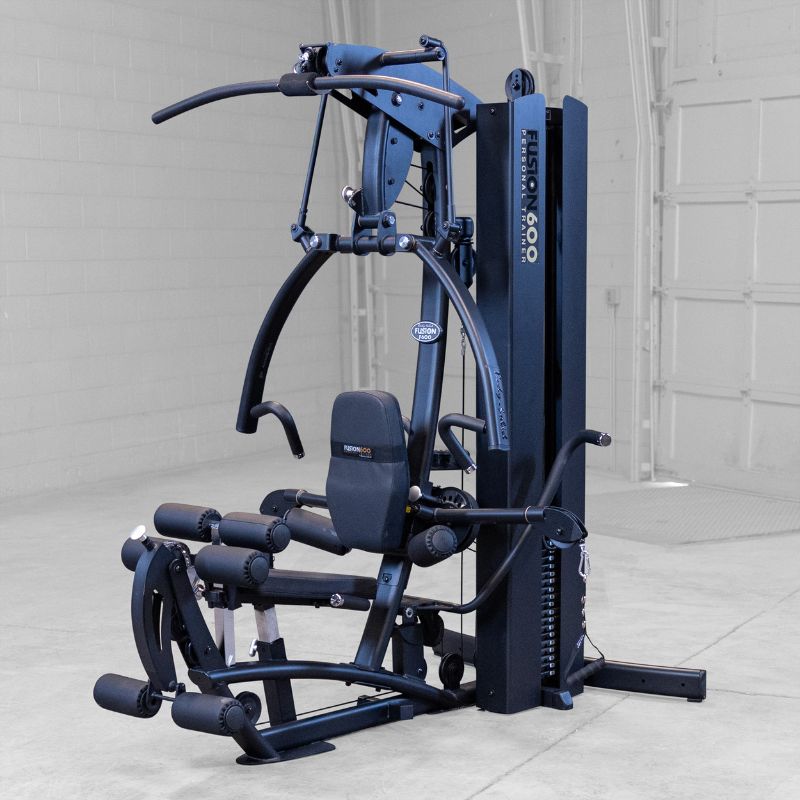

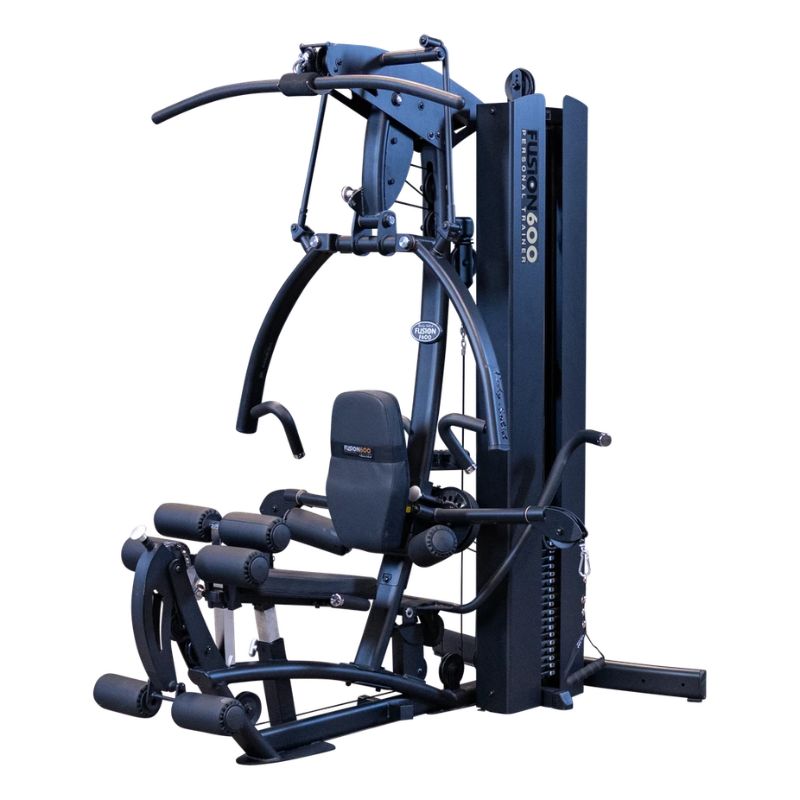

Body-Solid F600B FUSION Personal Trainer
Body-Solid F600B FUSION Personal Trainer
Single-Stack Total-Body Gym with Bi-Angular Press Arm, Functional Training Arms & Dual-Function Leg Station
Introduction
The Body-Solid F600B FUSION Personal Trainer combines traditional selectorized strength training with adjustable functional movement in one space-efficient gym system.
At the center of the Body Solid Fusion 600 Personal Trainer is Body-Solid’s Bi-Angular® Press Arm, which follows a converging path while applying resistance from multiple directions. According to Body-Solid, this design increases muscle interaction by 25% compared with a traditional press movement.
The F600B also features synchronized articulating functional training arms, a dedicated seated leg curl and leg extension station, a 4-position press arm, and more than 60 exercise options. With an 11-gauge steel frame and a standard 210 lb weight stack, it is designed for full-body strength and functional training in home and light commercial environments.
Why Choose the Body-Solid Fusion 600?
- 60+ Exercise Options – Train the chest, back, shoulders, arms, legs, and core from one machine
- Bi-Angular® Press Arm – Provides a natural converging press movement with increased muscle interaction
- Dual-Function Leg Station – Includes seated leg curls and leg extensions
- 160° Functional Training Arms – Allows resistance to be approached from multiple angles

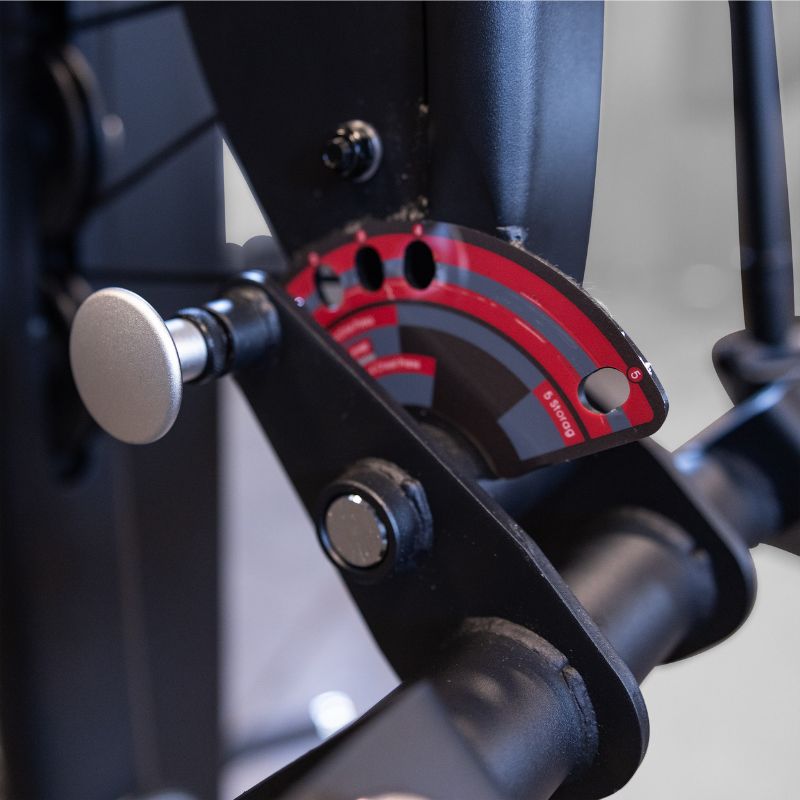

- 4-Position Press Arm – Supports multiple pressing and rowing movements
- 210 lb Weight Stack – Selectorized resistance comes standard
- 310 lb Stack Option – Upgrade option available according to the supplied product sheet
- Gas-Assisted Seating – Makes user positioning easier to adjust
- 11-Gauge Steel Construction – Built for repeated strength training use
- Optional Attachments – Add leg press, assisted chin/dip, or multi-hip training
Features & Benefits

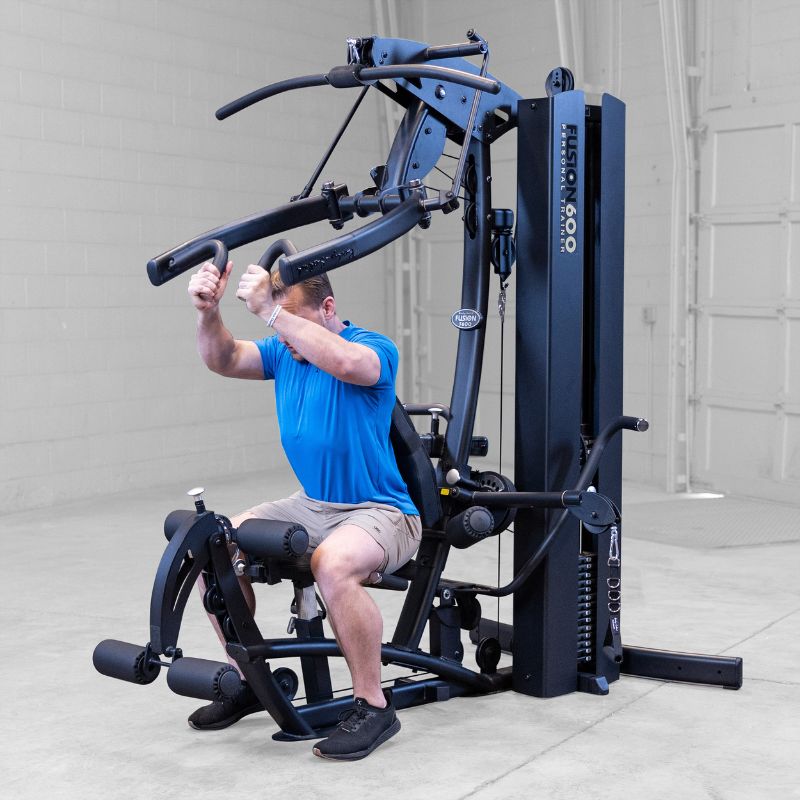

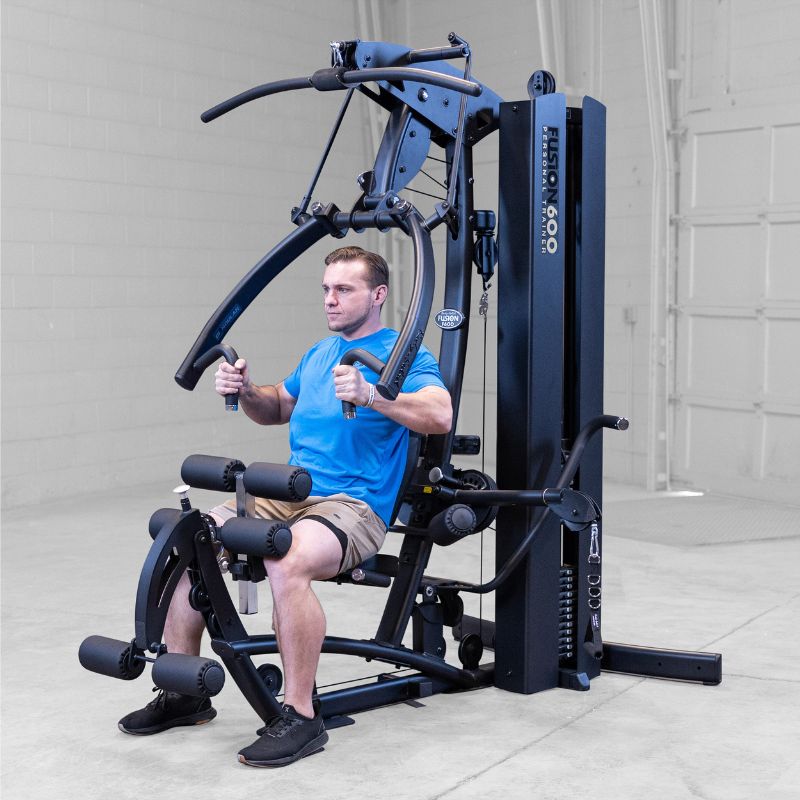

Bi-Angular® Press Arm
The F600B uses Body-Solid’s Bi-Angular® press system to guide the arms through a natural, converging movement path.
Body-Solid states that the design generates 25% more muscle interaction, helping keep the chest engaged throughout the movement.
The press arm can support exercises such as:
- Chest press
- Incline press
- Decline press
- Shoulder press
- Chest-supported row

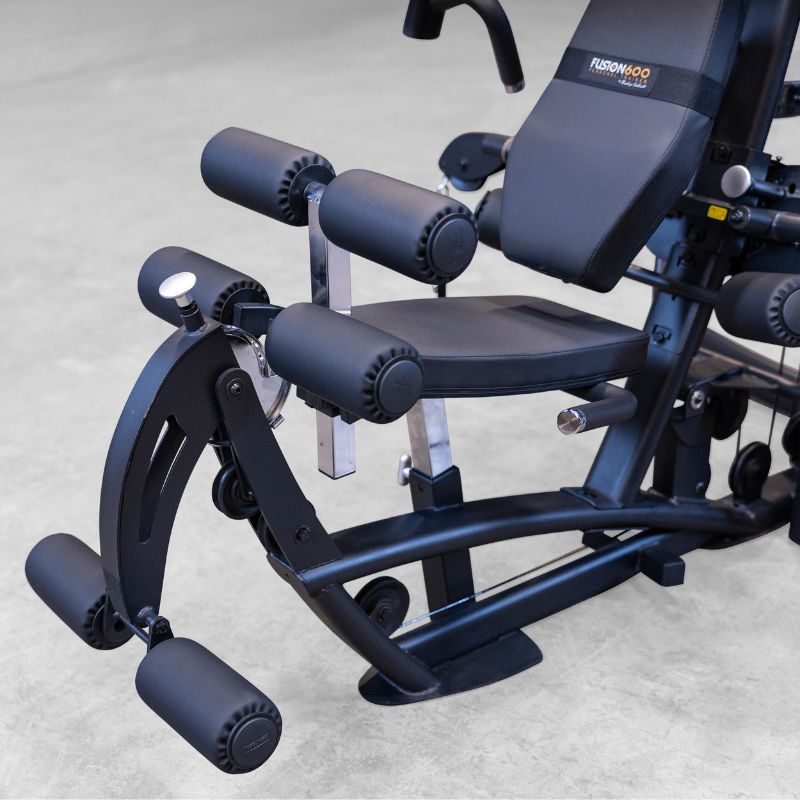

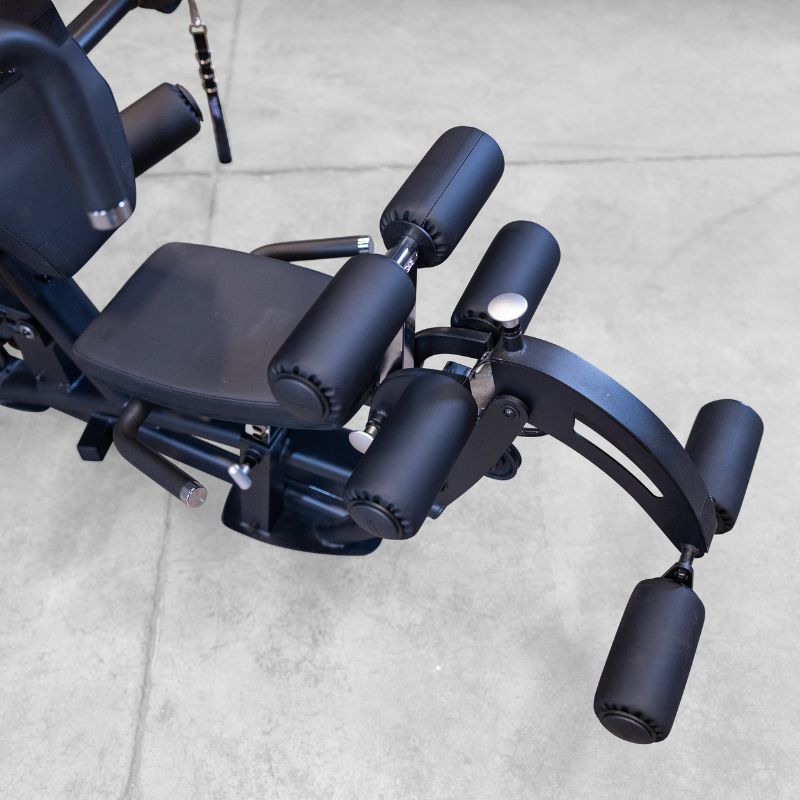

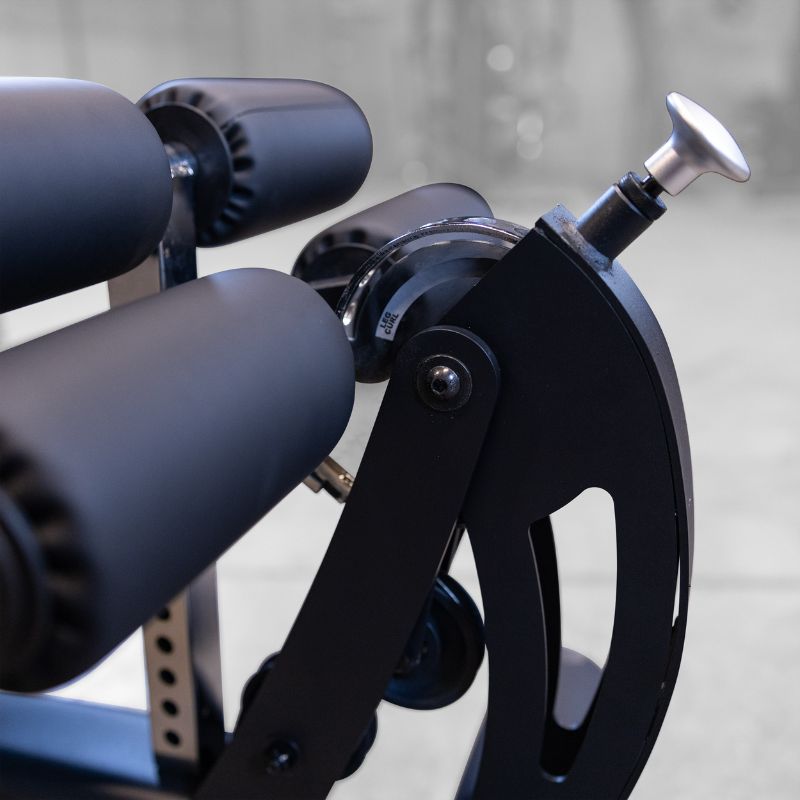

Dual-Function Leg Developer
One of the main differences between the Body Solid Fusion 600 and simpler single-stack gyms is its dedicated lower-body station.
The leg developer supports:
- Seated Leg Curls – Targets the hamstrings
- Leg Extensions – Targets the quadriceps
Pivoting rollers help maintain a comfortable movement path throughout each repetition.

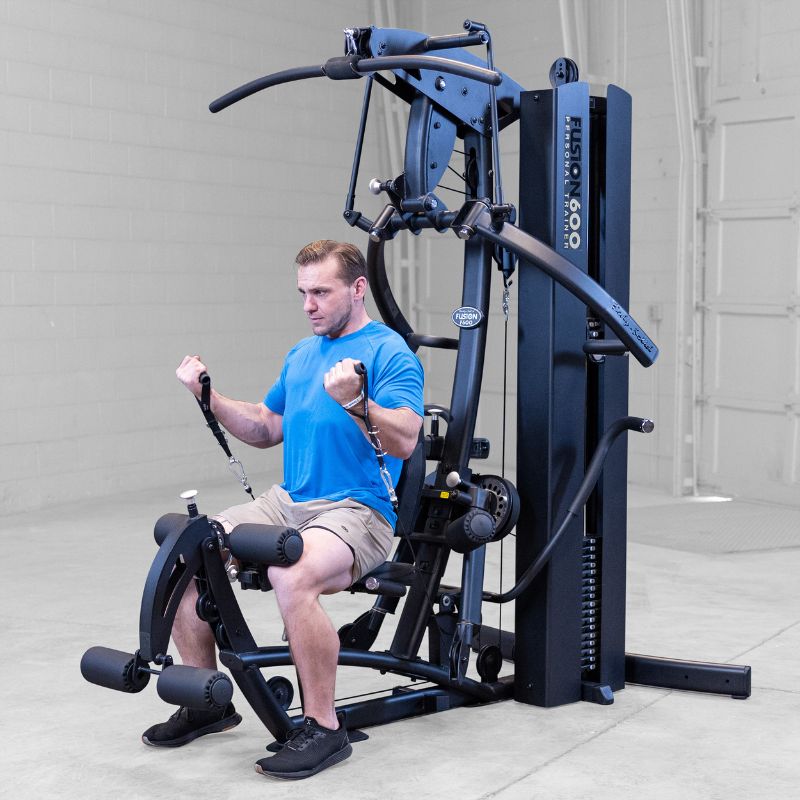

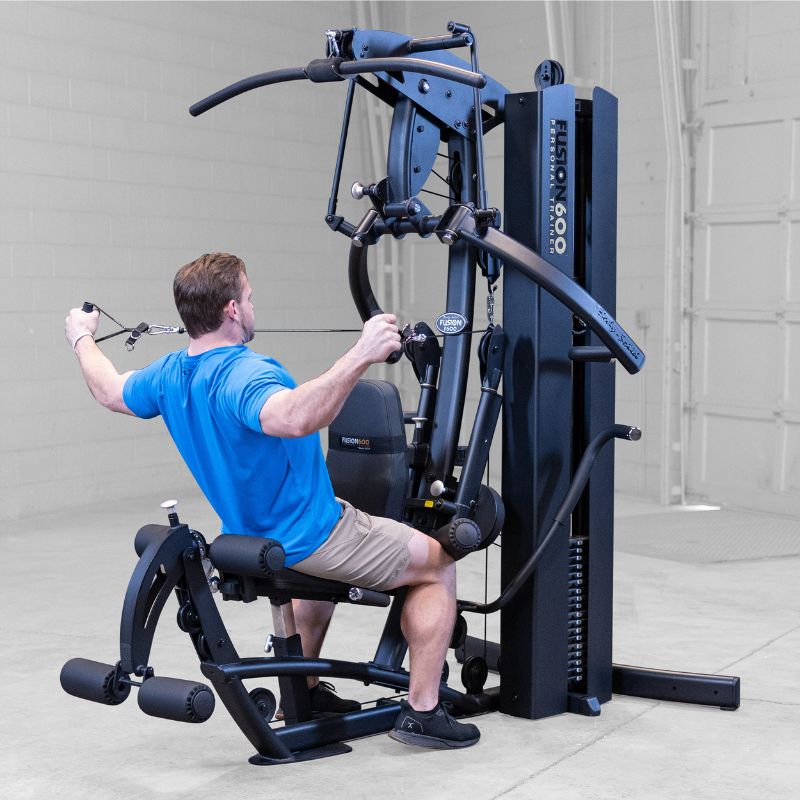

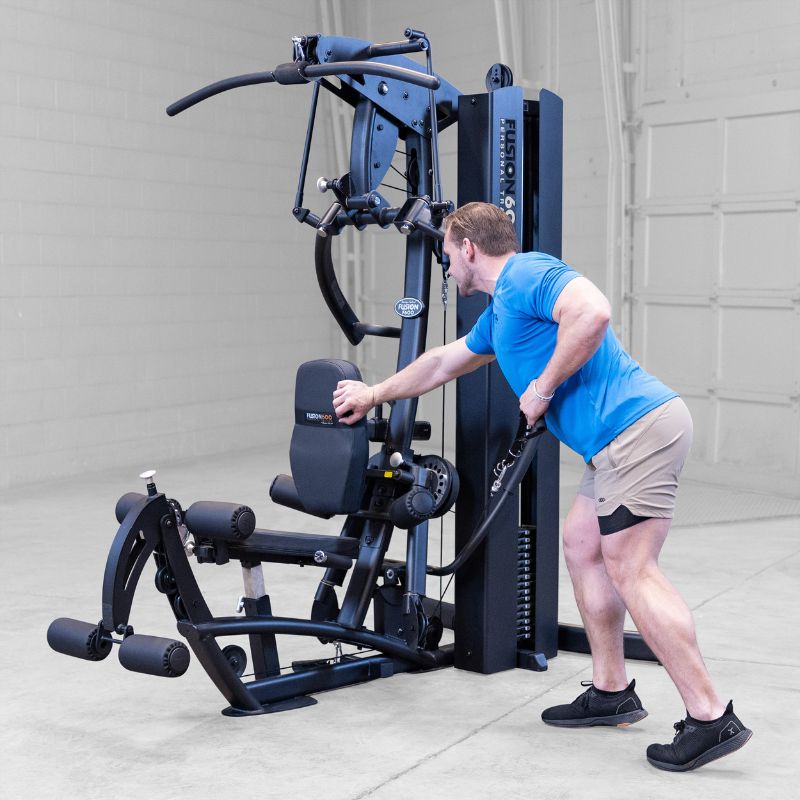

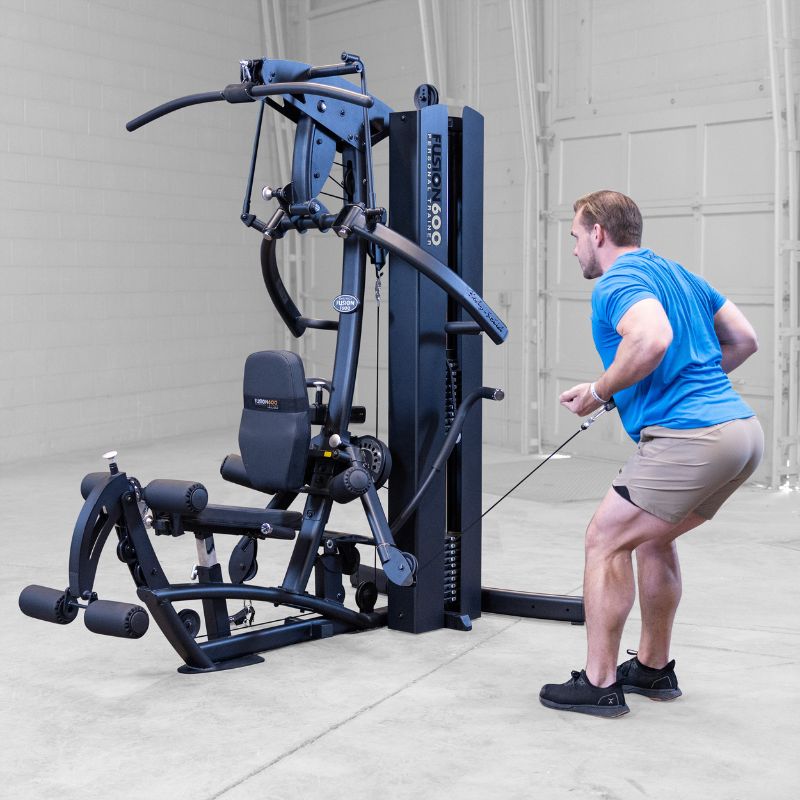

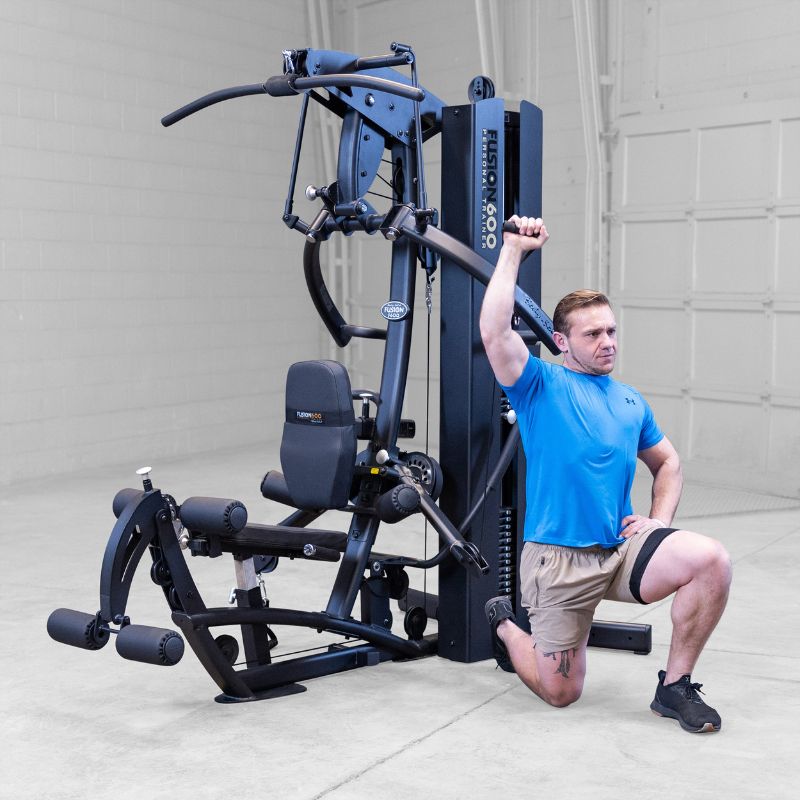

160° Articulating Functional Arms
The synchronized functional training arms provide approximately 160° of adjustment, allowing users to perform cable movements from multiple angles.
These arms can be used for exercises such as:

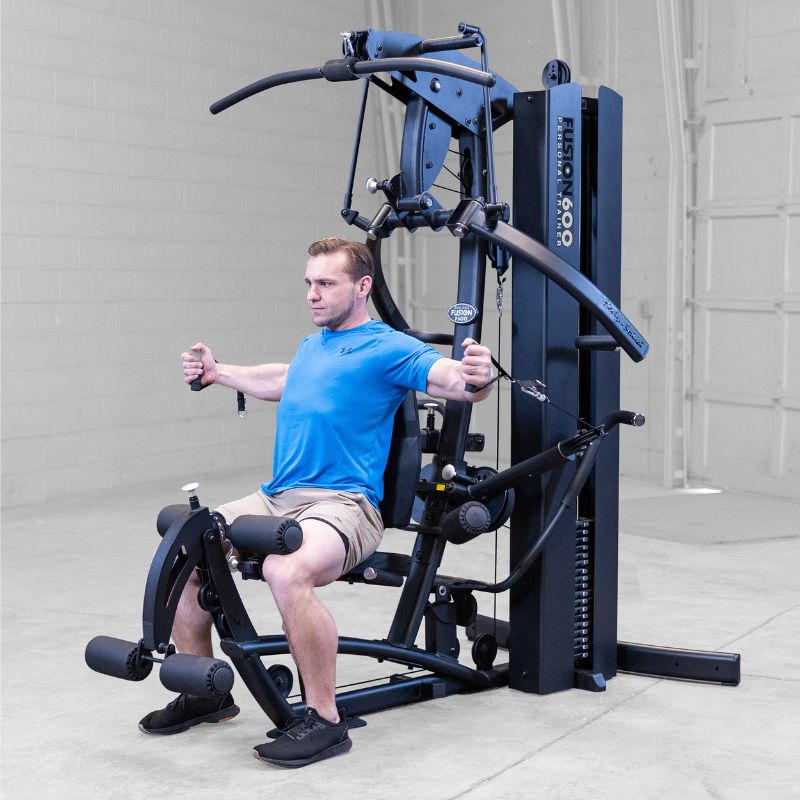

- Functional chest presses
- Pec fly variations
- Cable pulls
- Wood chops
- Core rotations
- Shoulder movements
- Side-access functional exercises
The provided product information describes the arms as adjustable in 20° increments.

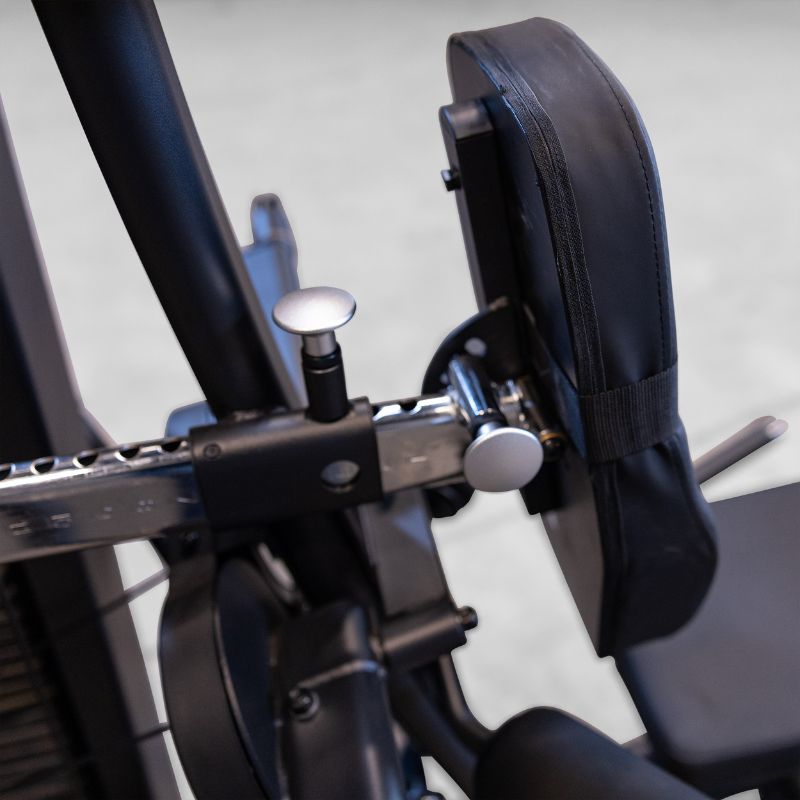

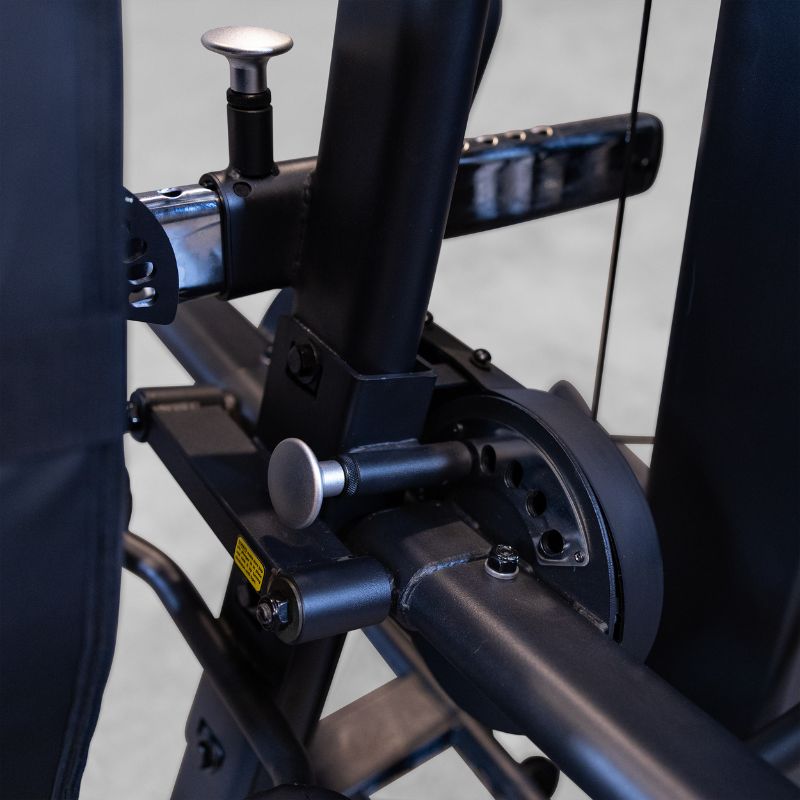

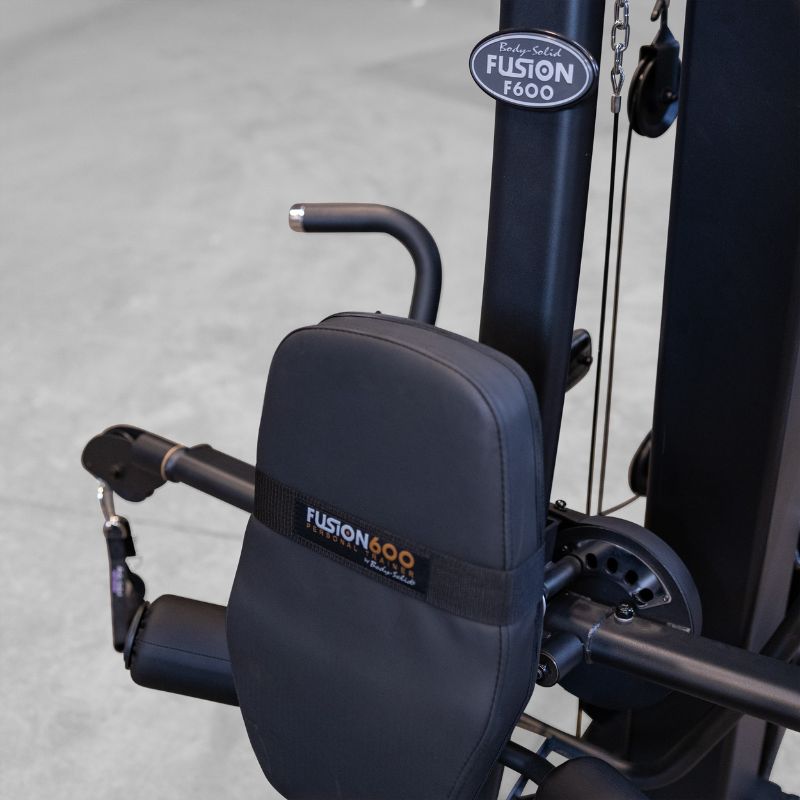

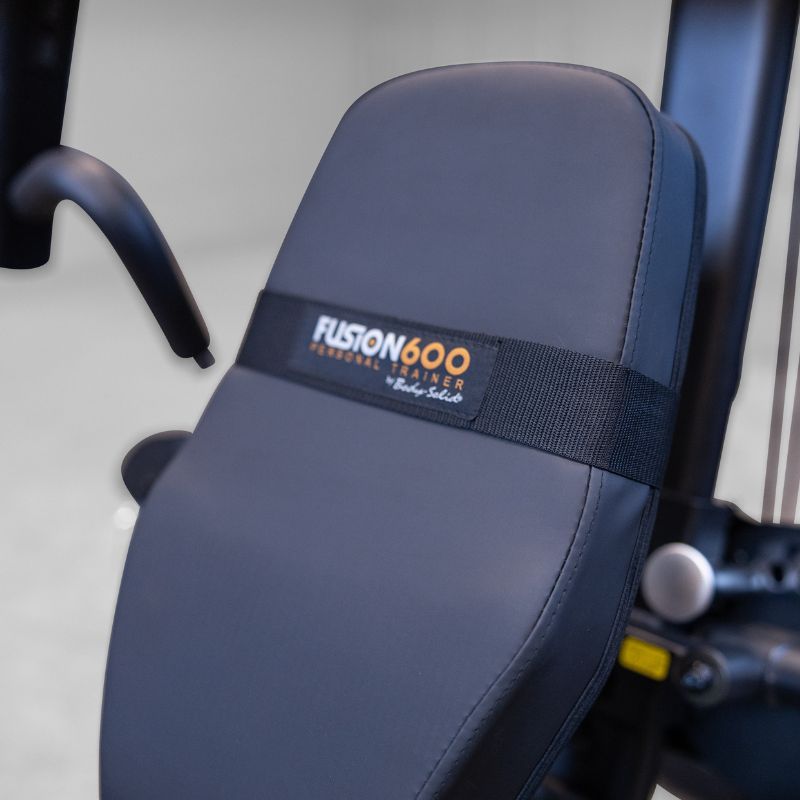

Gas-Assisted Seat & Adjustable Backrest
A gas-assisted telescoping seat and multi-position backrest help accommodate different users and exercise positions.
This makes transitions between pressing, pulling, and leg exercises more convenient.
Heavy-Duty Steel Construction
The F600B uses a curved, 11-gauge steel mainframe designed to provide a stable platform during full-body training.
Additional construction details include:
- Heavy-duty oval steel tubing
- Reinforced frame design
- High-density foam grips
- Chrome-plated end caps
- Selectorized weight resistance

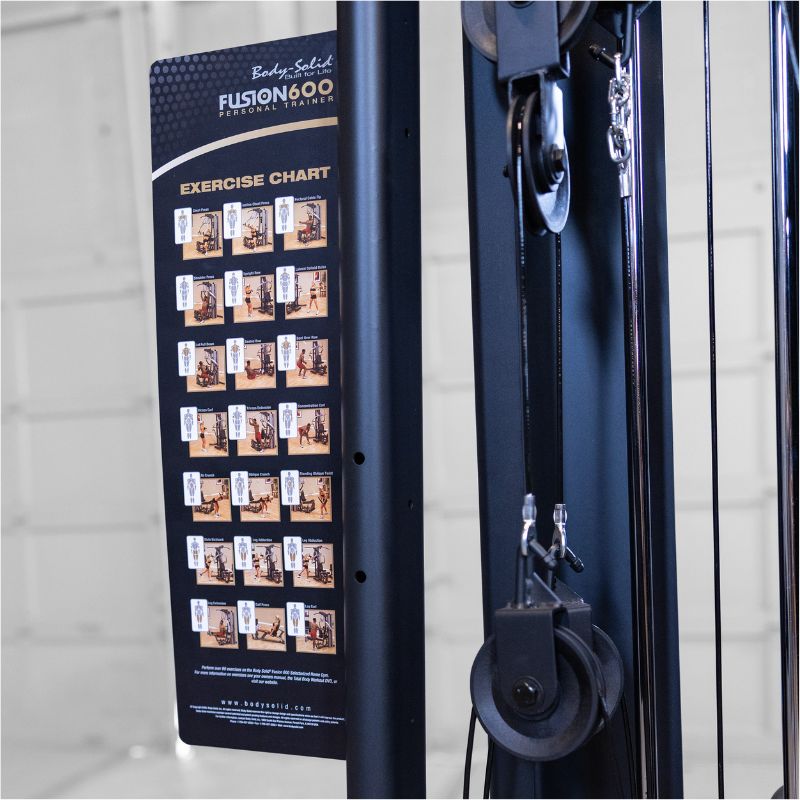

Body Solid Fusion 600 Exercises
The Body Solid Fusion 600 exercises can include:
- Chest press
- Incline press
- Decline press
- Shoulder press
- Pec fly

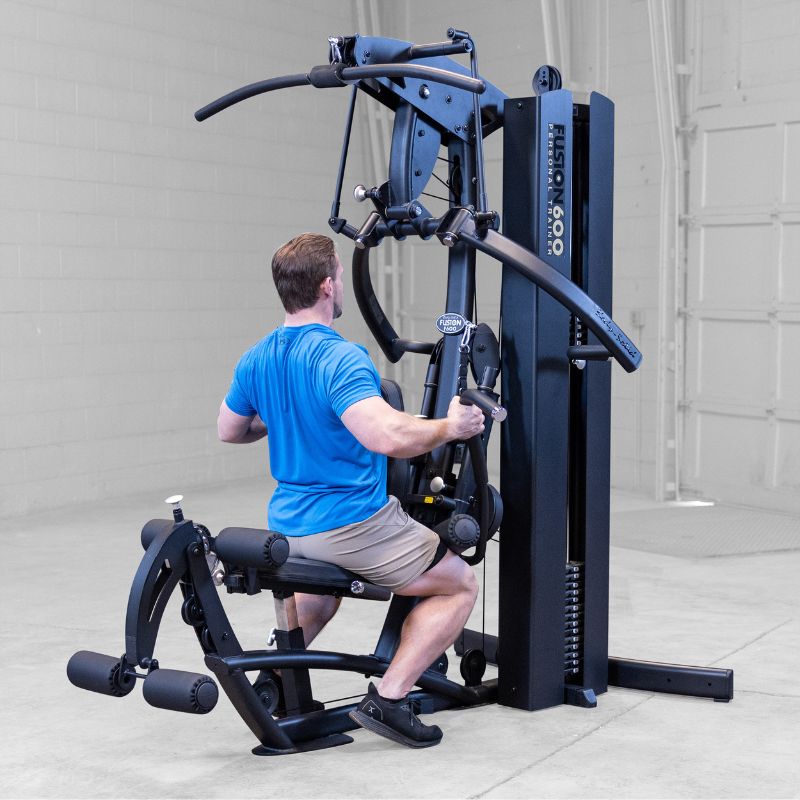

- Chest-supported row
- Lat pulldown
- Seated row
- Biceps curl
- Triceps extension
- Triceps pressdown
- Leg extension
- Seated leg curl
- Abdominal exercises
- Wood chops
- Functional cable presses
- Functional cable pulls
- Core rotations
- Side-access cable exercises
The supplied product information states that the machine supports more than 60 exercises.

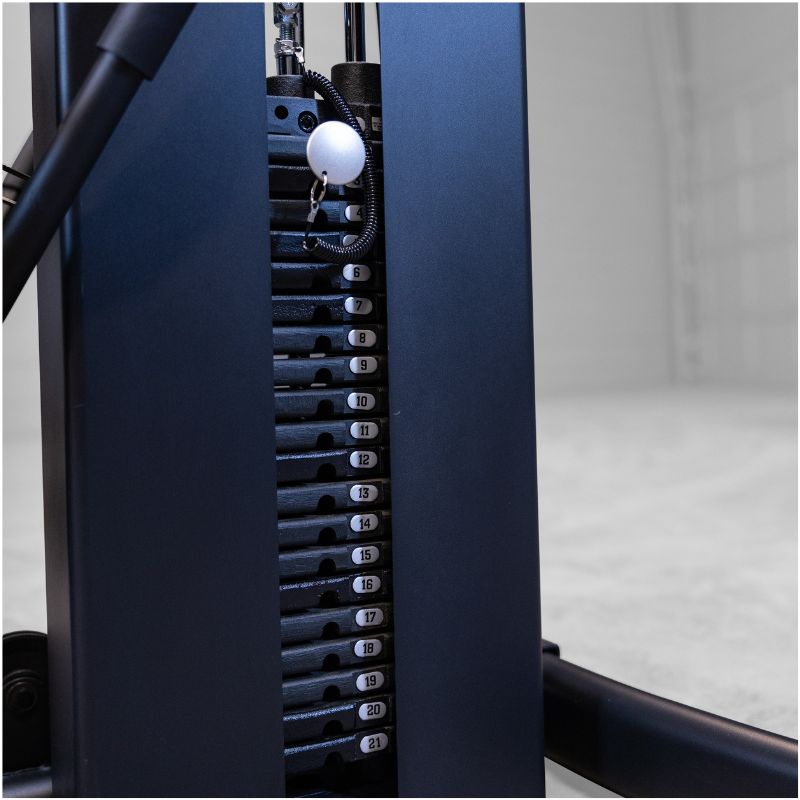

Weight Stack Options
| Weight Stack | Details |
|---|---|
| 210 lb | Standard |
| 310 lb | Optional upgrade |
Optional Attachments
FLP Fusion Leg Press Attachment
Adds dedicated:
- Leg presses
- Calf raises
FMH Fusion Multi-Hip Attachment
Designed for training:
- Inner thighs
- Outer thighs
- Hip flexors
- Glutes
FCDWA Fusion Weight-Assisted Chin / Dip Attachment
Adds:
- Assisted chin-ups
- Assisted pull-ups
- Assisted dips
Optional attachments are sold separately unless specifically included in a package.
Product Specifications
- Product Name: Body-Solid F600B FUSION Personal Trainer
- SKU: F600B
- Brand: Body-Solid
- Series: Fusion
- Product Type: Single Stack Gym
- Gym Type: Single Stack Gym
- Exercise Focus: Total Body
- Application / Use: Commercial
- Exercise Options: 60+
- Press System: Bi-Angular® converging press arm
- Press Arm Positions: 4
- Functional Arm Adjustment: Approximately 160°
- Functional Arm Adjustment Increments: 20°
- Leg Station: Seated leg curl and leg extension
- Standard Weight Stack: 210 lb
- Optional Weight Stack: 310 lb
- Frame: Heavy-duty 11-gauge steel
- Seat: Gas-assisted telescoping adjustment
- Backrest: Multi-position adjustable
- Current Finish: Black
Physical Specifications
The supplied references contain two different product weight figures.
| Specification | Product Data | Sell Sheet |
|---|---|---|
| Length | 76" | 76" |
| Width | 48" | 48" |
| Height | 83" | 83" |
| Product Weight | 573 lb / 260 kg | 685 lb |
Because the supplied materials disagree on assembled weight, confirm the current production specification if exact floor loading or installation weight is important.
Shipping Specifications
| Shipping Detail | Measurement |
|---|---|
| Total Shipping Weight | 621 lb / 282 kg |
| Number of Boxes | 4 + PP10 weight plate boxes |
| Box 1 | 148 lb; 71" L x 32" W x 13" H |
| Box 2 | 110 lb; 44" L x 16" W x 11" H |
| Box 3 | 119 lb; 76" L x 21" W x 12" H |
| Box 4 | 40 lb; 78" L x 8" W x 7.5" H |
| Weight Plates | 4 boxes of PP10 plates |
| Weight per Plate Box | 50 lb |
| Plate Box Dimensions | 11" L x 6" W x 10" H |
Body-Solid F600B Fusion Personal Trainer Review Summary
The Body-Solid F600B Fusion Personal Trainer is designed for buyers who want a single machine capable of both traditional selectorized strength exercises and functional cable movements.
Its standout features are the Bi-Angular® press arm, dedicated seated leg curl and leg extension station, synchronized functional arms, 210 lb weight stack, and more than 60 available exercises.
For shoppers researching a Body Solid Fusion 600 review, the F600B is particularly suited to users who want more dedicated lower-body training than the Fusion 500 while maintaining a compact single-stack footprint.
Body Solid Fusion 500 vs Fusion 600
The F500B and F600B share several features, including functional training arms, a single weight stack, and multi-position pressing.
The F600B stands out with its Bi-Angular® press system and more developed dual-function seated leg station, making it a strong option for users who prioritize chest and lower-body training within the same machine.
Manual & Product Information
- Body-Solid F600B Fusion Personal Trainer Manual: Available under the F600 manual
- Body Solid Fusion 600 Manual: Same F600 documentation reference
- Body Solid Fusion 600 Exercises: More than 60 exercise options are supported according to the supplied information
- Schematics: Available for the F600 platform
- Product Data Sheet: Available for the F600B
- Body Solid Fusion 600 Price: Pricing is not specified in the provided product information
Warranty
The supplied product sheet lists:
Commercial Warranty
| Component | Coverage |
|---|---|
| Frame & Welds | Lifetime |
| Bushings & Hardware | 3 Years |
| Pads, Cables & Grips | 1 Year |
In-Home Warranty
For in-home use, the product sheet lists lifetime coverage for:
- Frame and welds
- Bushings and hardware
- Pads, cables, and grips
Important Information
- This listing is for the Body-Solid F600B FUSION Personal Trainer
- Also searched as F600 Body Solid, Body Solid Fusion 600 Personal Trainer F600, and Body Solid F600 Fusion 600 Personal Trainer Gym
- The F600 now has a black finish; some older product photos may show a silver finish
- Standard weight stack is 210 lb
- A 310 lb weight stack upgrade is available according to the supplied product information
- FLP, FMH, and FCDWA attachments are optional
- Supplied sources list different assembled weights: 573 lb and 685 lb
- Confirm current machine weight before installation when exact specifications are required
Perfect For
- Home gyms
- Light commercial gyms
- Personal training studios
- Apartment fitness centers
- Corporate fitness rooms
- Full-body strength training
- Functional cable training
- Chest and back training
- Dedicated hamstring and quadriceps training
- Users looking for one multi-exercise gym system
Build a Complete Full-Body Training Setup
The Body-Solid F600B FUSION Personal Trainer combines Body-Solid’s Bi-Angular® pressing system, adjustable functional arms, dedicated seated leg curl and leg extension training, and more than 60 exercise possibilities in one integrated machine. With a 210 lb selectorized stack, 11-gauge steel construction, and several optional attachments, the F600B provides a versatile foundation for both traditional strength and functional training.
